Model | KSD-201 |
---|---|
Type | Hydraulic |
Swaging Force (ton) | 2100 ( Largest ) |
Max Hose Inside Ø (mm) | 102 |
Swaging Range (mm) | 6 – 70 |
Max Opening (mm) | 185 |
Rated Pressure (Mpa) | 31.5 |
Scale Accuracy (mm) | 0.01 |
Noise Level (dB) | 75 |
Motor | 4kw 380v 3 Phase |
Dies (no.) | 15pcs |
Dies (mm) | 15,19,23,26,31,36,41,47, 55, 63,75, 84, 105, 115, 130 or customise |
Oil Tank | 60 Litres |
Weight Nett / Gross (kg) | 580/590 |
Volume (m³) | 0.6596 |
Packing Size L x W x H (mm) | 590 x 860 x 1300 |
Availability : Enquire Now
Price per Unit
ex-gst
$11,800.00Inc-gst

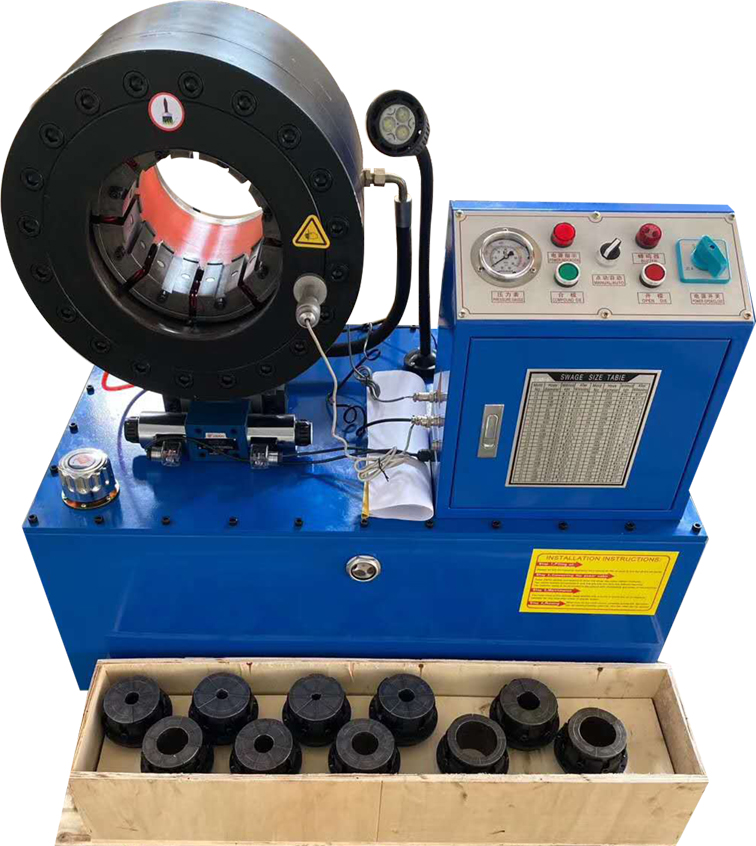

$13,570.00HYDRAULIC HOSE CRIMPER: RANGE 6-102MM 201
Description
SKU : HTA570200
Price per Unit
$11,800.00 (Exc GST)
$13,570.00 (Inc GST)
FEATURES:
* This machine is designed for crimping hydraulic hose onto fittings
* Range from 6.0mm to 102mm.
* This model is cones with stand with a set of 15 dies.
* Complete with an easy-to-read hydraulic hose chart.
* Foot pedal operated.
Weight | 590 kg |
---|---|
Dimensions | 0.59 × 0.86 × 1.3 cm |
Specifications
