| DESCRIPTION | Motorised |
|---|---|
| MODEL | 160 Ton |
| LENGTH | 900mm |
| WIDTH | 330mm |
| HEIGHT | 2260mm |
| STROKE | 400mm |
| BETWEEN FRAMES | 1100mm |
| BED WIDTH | 575mm |
| WORKING SPEED | 4 mm/sec |
| DOWN SPEED | 9 mm/sec |
| RETURN SPEED | 13 mm/sec |
| MOTOR | 5.5kw |
| WEIGHT NETT/GROSS | 2.450kg |
| VOLUME | 5.472 |
| Packing Size L x W x H | 2400 x 1200 x 1900mm |
Description
SKU : HP-300170
Price per Unit
$12,100.00 (Exc GST)
$13,915.00 (Inc GST)
FEATURES:
* Welded heavy steel frame.
* Double speed operation to improve efficiency.
* Moveable cylinder.
* Manual and electric type to ease operation.
| Weight | 2450 kg |
|---|---|
| Dimensions | 2.4 × 1.2 × 1.9 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
HYDRAULIC PRESS: 20 TON SUPER (Manual)
SKU:
HP-300144

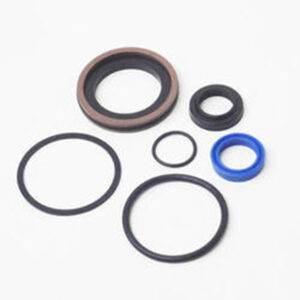

HYDRAULIC PRESS: 20 TON SEAL KIT (SIDE PUMP)
SKU:
HP-300145
PRESSURE GAUGE: HYDRAULIC PRESS 20 TON
SKU:
HP-300146
HYDRAULIC PRESS: 50 TON FLOOR MPA-50 AIR ASSIST
SKU:
HP-300152
* Robust steel frame and heavy duty table.
* Foot operated pneumatic pump for quick setting up time.
* Manual hand pump for setting the pressure on the workpiece.
* Dual action pump for higher efficiency.
* Pressure gauge mounted in top of frame.
* Overload to 150%.
* Ram can be adjusted left and right on heavy duty ball bearings.
* Adjustable table height using side mounted winch.
* Ideal workshop press for repetitive use.
HYDRAULIC PRESS: 60 TON Hyd HPM-60A
SKU:
HP-300160
HYDRAULIC HOSE: SUIT 60 TON FLOOR HPM-60A
SKU:
HP-300162
HYDRAULIC PRESS: 50 TON FLOOR (Manual)
SKU:
HP-300240
HYDRAULIC FLANGE SPREADER: 10 TON 31-41 STUD CAPACITY
SKU:
HP-300405
