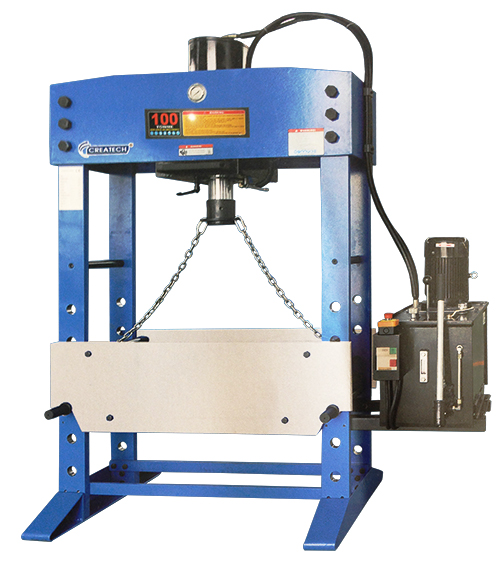

| DESCRIPTION | Motorised |
|---|---|
| MODEL | 200 |
| LENGTH | 2280mm |
| WIDTH | 400mm |
| HEIGHT | 2600mm |
| STROKE | 400mm |
| BETWEEN FRAMES | 1200mm |
| BED WIDTH | 400mm |
| WORKING SPEED | 2 mm/sec |
| DOWN SPEED | 7.3 mm/sec |
| RETURN SPEED | 10 mm/sec |
| MOTOR | 5.5kw |
| WEIGHT NETT/GROSS | 3250kg |
| VOLUME | 7.020 |
| Packing Size L x W x H | 1300 x 2700 x 2000mm |
Description
SKU : HP-300175
Price per Unit
$13,200.00 (Exc GST)
$15,180.00 (Inc GST)
FEATURES:
* Welded heavy steel frame.
* Double speed operation to improve efficiency.
* Moveable cylinder head.
* Manual and Electric option for ease of operation.
| Weight | 3250 kg |
|---|---|
| Dimensions | 1.3 × 2.7 × 2 cm |
