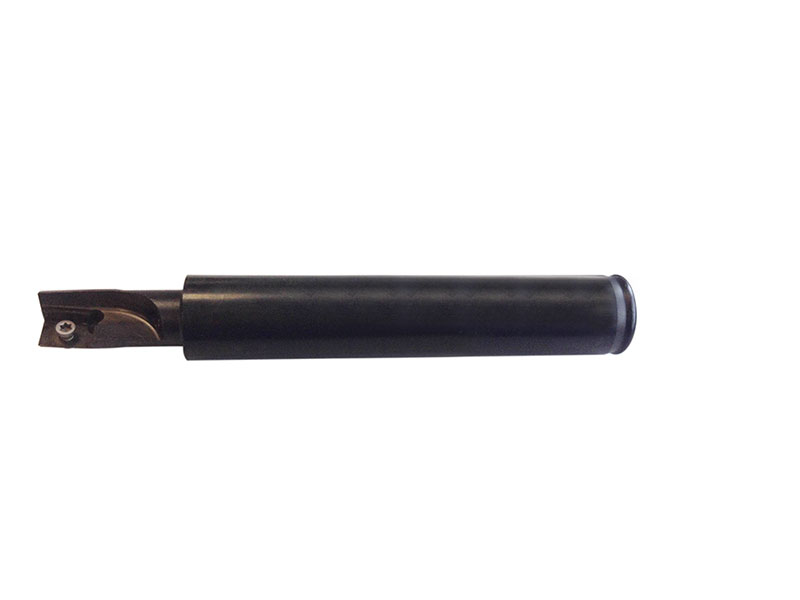

DESCRIPTION | Indexable End Mill |
---|---|
BRAND | CANELA |
DIAMETER | 12.0mm |
APPROACH ANGLE | |
SHANK | 16.0mm |
LENGTH O/A | 110.0mm |
INSERTS | 1PC |
INSERT TYPE | AP..1003 |
CHEVPAC CODE | |
WEIGHT NETT/GROSS | 0.150/ 0.170kg |
VOLUME | 0.0001cm |
Description
SKU : EMT621180
Price per Unit
$144.00 (Exc GST)
$165.60 (Inc GST)
FEATURES:
* This positive milling cutter with an exact angle of 90deg uses very strong inserts allowing depth passes and high feed per teeth. The insert is fixed by a torx screw that allows a good chip evacuation and easy use. Equipped with short cylindrical shank and internal coolant. APPLICATIONS: This face and square (angle 90deg) slot and side milling cutter works well on steels alloyed steels stainless steels refractory casts and aluminium alloys. This general milling cutter for diversified applications is recommended for conventional milling machines and machining centers. Uses positive 11deg clearance – Rectangular inserts.
Weight | 0.17 kg |
---|---|
Dimensions | 0.11 × 0.025 × 0.025 cm |
