| Swing Over Bed (mm) | 500 |
|---|---|
| Swing Over X-slide (mm) | 300 |
| Swing Over Gap (mm) | 720 |
| Between Centres (mm) | 1,500 |
| Bed Width (mm) | 400 |
| Spindle Taper | D1-8 |
| Speeds (no.) | 24 |
| Speed Range (rpm) | 10 – 1,400 |
| Spindle Bore (mm) | 80 |
| Metric Threading (M) | 1 -192 |
| Imperial Threading (tpi) | 1/2 – 24 |
| Tailstock Taper | MT5 |
| Motor (kW) | 7.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2,500 / 2,300 |
| Volume (cm) | 6.175 |
| Packing Size L x W x H (mm) | 2,500 x 1,300 x 1,900 |
Description
SKU : L--110215
Price per Unit
$23,000.00 (Exc GST)
$26,450.00 (Inc GST)
FEATURES:

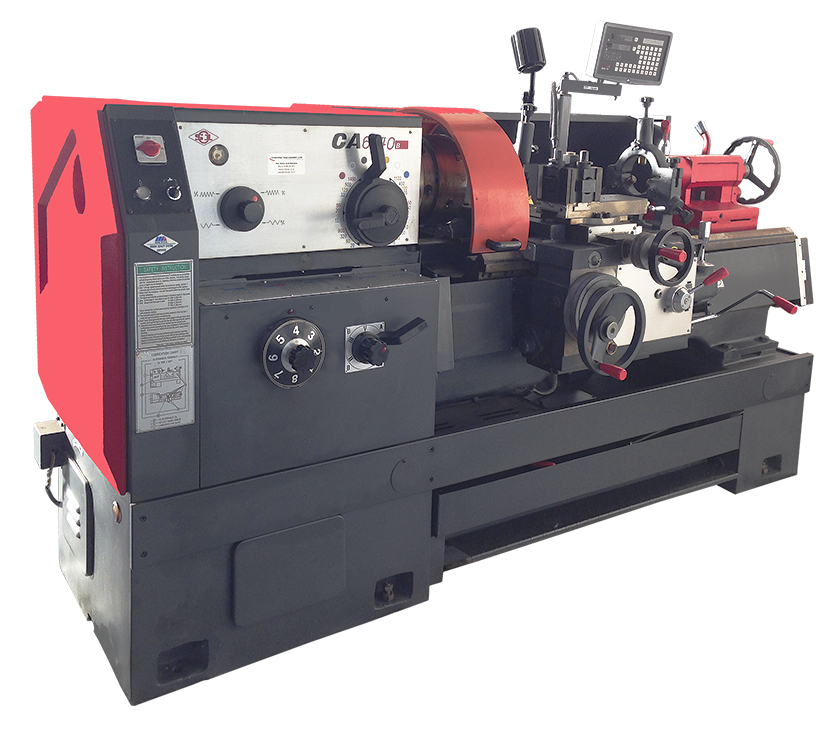

* The CA6250B is a heavy duty lathe with 500mm swing and 80mm spindle bore.
* All headstock gears are hardened and pricision ground for smooth running and long life durability.
* Bed is also induction hardened and ground for durability and log service life.
* Fitted with apron mounted button for rapid lonitudional travel.
* This machine is also fitted with taper turning attachment.
* Two axis digital readout.

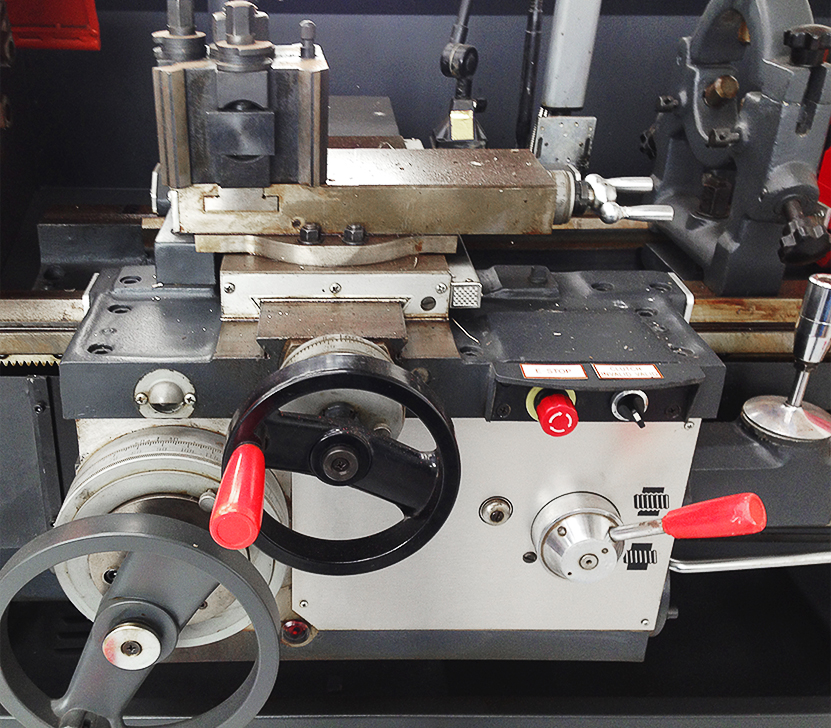

* Quick change tool post with 4 holders.
| Weight | 2300 kg |
|---|---|
| Dimensions | 2.5 × 1.3 × 1.9 cm |
