| Swing Over Bed (mm) | 420 |
|---|---|
| Swing Over X-slide (mm) | 250 |
| Swing Over Gap (mm) | 590 |
| Between Centres (mm) | 1,000 |
| Bed Width (mm) | 250 |
| Spindle Nose | MT6 |
| Speeds (no.) | 16 |
| Speed Range (rpm) | 45 – 1,800 |
| Spindle Bore (mm) | 52 |
| Spindle Taper | MT6 |
| Metric Threading (M) | 0.2 – 14 |
| Imperial Threading (tpi) | 2 – 72 |
| Tailstock Taper | MT4 |
| Tool Height (mm) | 20 |
| Motor (kW) | 4.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 1,160/ 1,350kg |
| Volume | 3.1460cm |
| PACKING SIZE L X W X H | 2060mm x 920 x 1660mm |
Description
SKU : L--120006
Price per Unit
$14,100.00 (Exc GST)
$16,215.00 (Inc GST)
FEATURES:

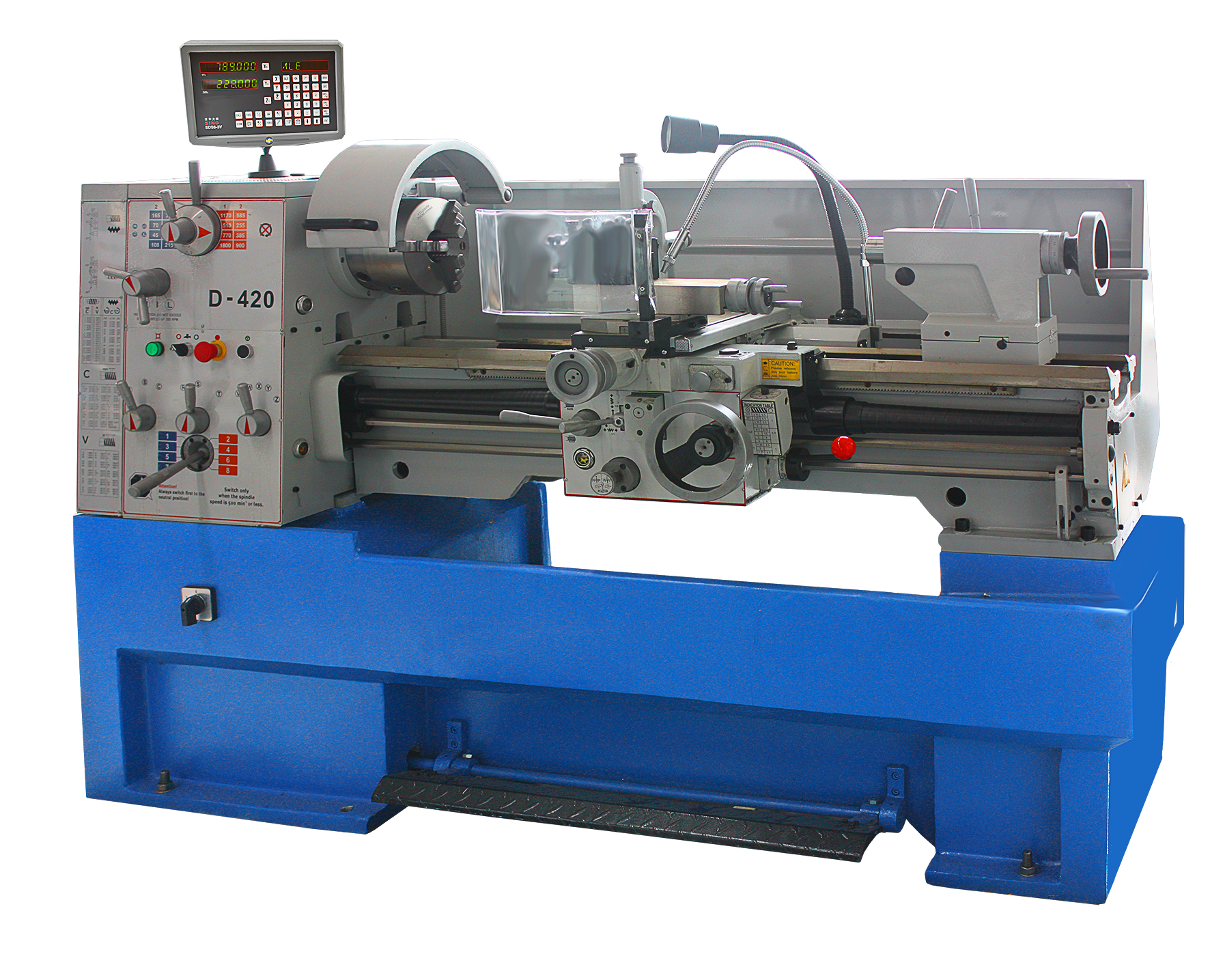

* This D420 lathe comes with hardened and ground bedways.
* Hardened and ground gears in the headstock to offer a long service life.
* Precision headstock taper rolling bearings on the spindle.
* Integrated cast iron floor stand.
* Three points support for spindle.
* Two speed motor.
* Digital readout and quickchange toolpost.
