Swing Over Bed (mm) | 460 |
---|---|
Swing Over X-slide (mm) | 290 |
Swing Over Gap (mm) | 700 |
Between Centres (mm) | 1,500 |
Bed Width (mm) | 335 |
Spindle Nose | D1-8 |
Speeds (no.) | 12 |
Speed Range (rpm) | 42 – 1,800 |
Spindle Bore (mm) | 80 |
Spindle Taper | MT7 |
Metric Threading (M) | 0.5 – 20.0 |
Imperial Threading (tpi) | 72 – 1 5/8 |
Tailstock Taper | MT5 |
Tool Height (mm) | 25 |
Motor (kW) | 5.5 |
Voltage (V) | 415 |
Weight Nett / Gross (kg) | 2,635 / 2,900 |
Volume | 37410cm |
Packing Size L x W x H (mm) | 2,930 x 760 x 1,680 |
Description

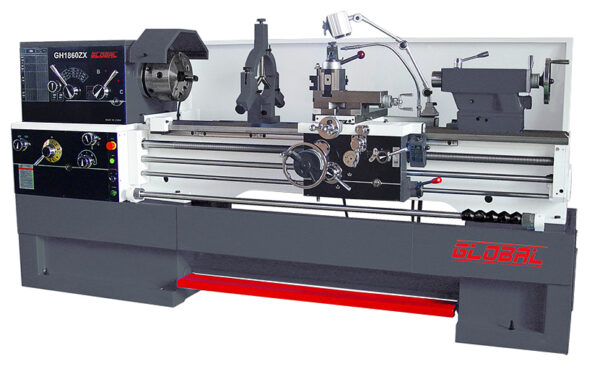

SKU : L--110334
Price per Unit
$23,900.00 (Exc GST)
$27,485.00 (Inc GST)
FEATURES:
* Large 80mm spindle bore makes this machine a very desirable machine for any workshop.
* Bed is hardened and ground offering a long wear resistant lifespan.
* All headstock gears are hardened and ground.
* No changing of gears required to cut metric or imperial threads.
* Auto stop mechanisim for longditudinal travel which can be set to the desired length.
* Full cast bed make this machine very rigid.
Weight | 2.9 kg |
---|---|
Dimensions | 2.93 × 0.76 × 1.68 cm |
Specifications
Description
Reviews (0)
Be the first to review “LATHE: GL-1860 GLOBAL 80MM BORE, 3 PHASE” Cancel reply
