| Swing Over Bed (mm) | 460 |
|---|---|
| Swing Over X-slide (mm) | 290 |
| Swing Over Gap (mm) | 700 |
| Between Centres (mm) | 2,000 |
| Bed Width (mm) | 335 |
| Spindle Nose | D1-8 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 42 – 1,800 |
| Spindle Bore (mm) | 80 |
| Spindle Taper | MT7 |
| Metric Threading (M) | 0.5 – 20.0 |
| Imperial Threading (tpi) | 72 – 1 5/8 |
| Tailstock Taper | MT5 |
| Tool Height (mm) | 25 |
| Motor (kW) | 5.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2,800 / 3,128 |
| Volume | 6.6654cm |
| Packing Size L x W x H (mm) | 3450 x 1150 x 1680mm |
Description
SKU : L--110340
Price per Unit
$29,300.00 (Exc GST)
$33,695.00 (Inc GST)
FEATURES:
* Large 80mm spindle bore makes this machine a very desirable machine for any workshop.
* Bed is hardened and ground offering a long wear resistant lifespan.
* All headstock gears are hardened and ground.
* No changing of gears required to cut metric or imperial threads.
* Auto stop mechanisim for longditudinal travel which can be set to the desired length.
* Full cast bed make this machine very rigid.
| Weight | 2800 kg |
|---|---|
| Dimensions | 3.45 × 1.15 × 1.68 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: JESSEY CHAMPION 1550 (TAIWAN)
SKU:
L--110150
* Rigid construction beds are induction hardened and precision ground.
* Harden and ground spindle & gears in headstock for high speed running with low noise.
* 'One shot' oil pump on saddle provides excellent slideways central lubrication.
* Fitted with 2 axis digital readout & quickchange toolpost.
* Two grouped change levers for 16 spindle speeds.
* Moveable front chip tray allows easy chip cleaning.
* Adjustable apron clutch for bi-directional feed pressure adjustment.
* Comprehensive range of metric, imperial, diametral & modular threads.
* Made in Taiwan.
LATHE: JESSEY MAJOR 2260 (TAIWAN)
SKU:
L--110168
* Rigid construction beds are induction hardened and precision ground.
* Harden and ground spindle & gears in headstock for high speed running with low noise.
* 'One shot' oil pump on saddle provides excellent slideways central lubrication.
* Fitted with 2 axis digital readout & quickchange toolpost.
* Two grouped change levers for 16 spindle speeds.
* Moveable front chip tray allows easy chip cleaning.
* Adjustable apron clutch for bi-directional feed pressure adjustment.
* Comprehensive range of metric, imperial, diametral & modular threads.
* Made in Taiwan.
LATHE: GL-1330 GLOBAL 38MM BORE, 1 PHASE
SKU:
L--110300
* Induction hardened & precision ground V-way beds.
* Hardened & ground headstock gears.
* Adjustable auto stop mechanism for longitudinal travel.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* Large range of speeds and thread cutting options.
* Fitted with a work lamp & foot brake for added safety.
* Italian style quickchange toolpost.
* Gap bed for larger diameter work pieces.
* Independent leadscrew & feed rod.

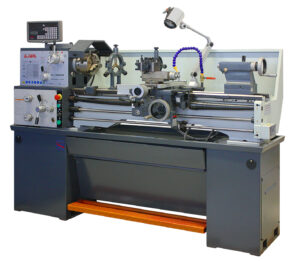

LATHE: GL-1440GHB GLOBAL 38MM BORE, 3 PHASE
