| Swing Over Bed (mm) | 434 |
|---|---|
| Swing Over X-slide (mm) | 277 |
| Swing Over Gap (mm) | 630 |
| Between Centres (mm) | 1,500 |
| Bed Width (mm) | 300 |
| Spindle Nose | D1-6 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 10 – 2,000 |
| Spindle Bore (mm) | 58 |
| Spindle Taper | MT6 |
| Metric Threading (M) | 0.2 – 14 |
| Imperial Threading (tpi) | 2 – 72 |
| Tailstock Taper | MT4 |
| Tool Height (mm) | 25 |
| Motor (kW) | 3.75 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 1,700 / 1,800 |
| Volume | 5.702cm |
| Packing Size L x W x H | 2900 x 1170 x 1680 |
LATHE: GOSAN 1740AV VARIABLE SPEED
$31,250.00

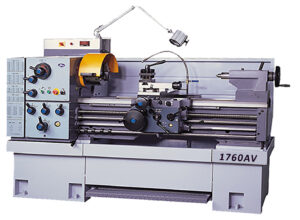

LATHE: GOSAN 1760AV VARIABLE SPEED
$32,250.00

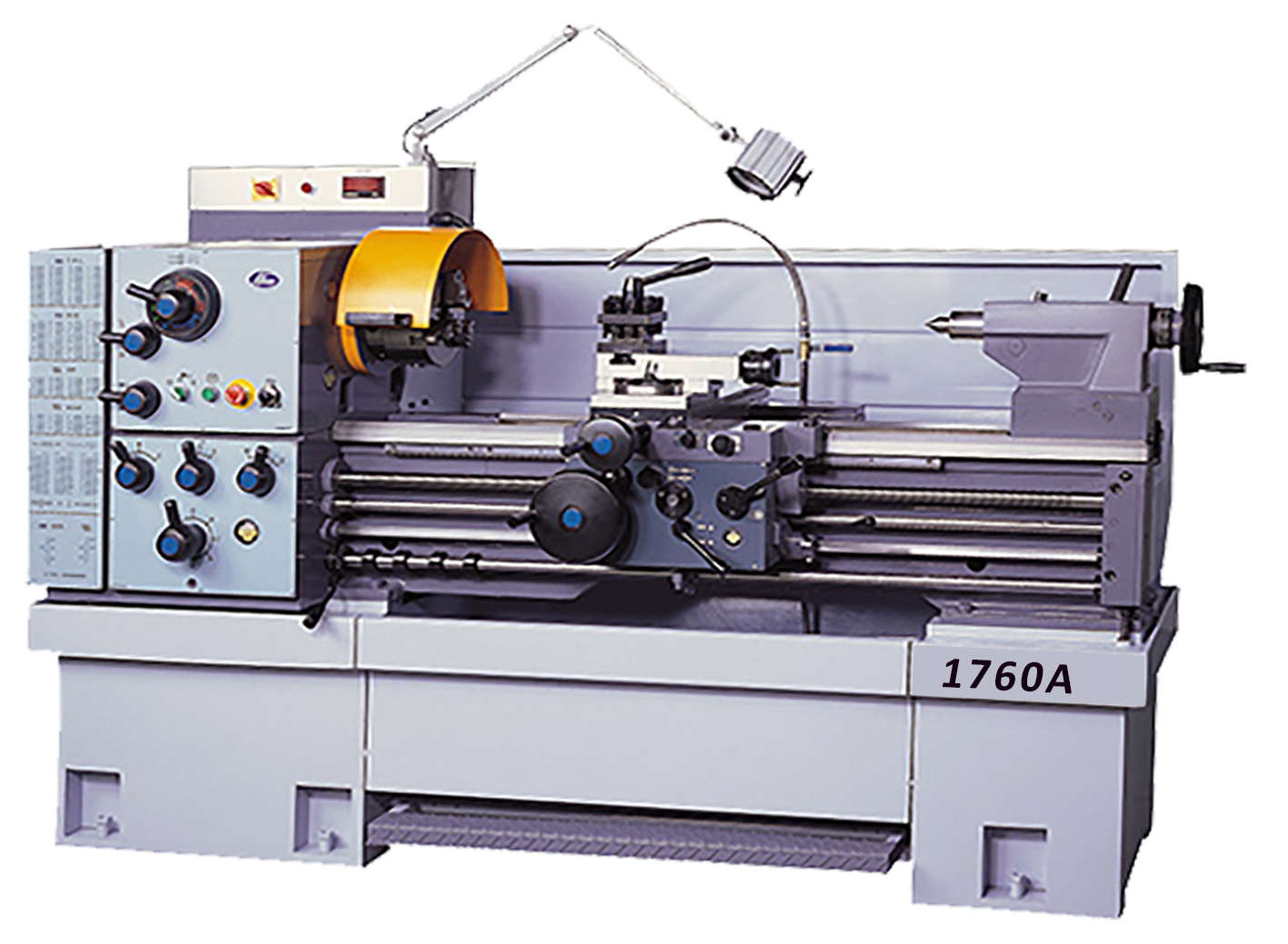

Description
SKU : L--109180
Price per Unit
$31,000.00 (Exc GST)
$35,650.00 (Inc GST)
FEATURES:
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
| Weight | 1800 kg |
|---|---|
| Dimensions | 2.9 × 1.17 × 1.68 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: GOSAN 1740A 7.5HP
SKU:
L--109170
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 2060 10HP
SKU:
L--109232
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: LD-1424E 1 PHASE WITH DRO QCT (TAIWAN)
SKU:
L--109290
* Induction hardened & precision ground V-way beds.
* Hardened & ground headstock gears.
* Cast from quality high tensile cast iron.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Dual graduation thread dial.
* Gap bed for larger diameter work pieces.
* Manufactured in Taiwan.
LATHE: LD-1430E 3 PHASE WITH DRO QCT (TAIWAN)
SKU:
L--109295
* Induction hardened & precision ground V-way beds.
* Hardened & ground headstock gears.
* Cast from quality high tensile cast iron.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Dual graduation thread dial.
* Gap bed for larger diameter work pieces.
* Manufactured in Taiwan.
LATHE: GLH-330 330 X 750 X 38MM 1 PHASE (NEW)
SKU:
L--120468H
* New Model
* Precision ground and supersonic frequency hardened bedways.
* The spindle is supported with precision roller bearings.
* Head stock gears are made of high quality steel ground and hardened.
* Sealed and easy operating feed box has various feeds and thread cutting functions.
* ASA D1-4 camlock spindle nose.
* Machine is fitted with foot brake & work lamp for extra safety.
* Short bed length and space saving for training institutions.
* Fitted with safety chuck guard.
* Emergency stop buttons both ends of chip tray
LATHE: BL-336D 300 X 900 X 38MM BORE DRO, 1 PHASE
SKU:
L--120513
* Induction hardened & precision ground V-way beds.
* D1-4 Spindle is supported by high quality taper rolling bearing
* Automatic feed and threading are fully interlocked.
* Coolant pump & tank system.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Gap bed for larger diameter work pieces.
* Independent leadscrew & feed rod.
* Carriage mounted spindle control lever.
* Tailstock can be offset for turning tapers.

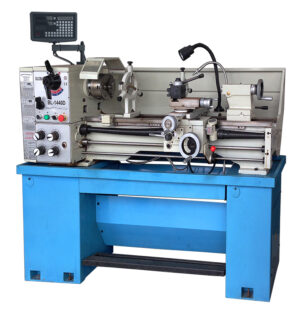

LATHE: BL-1440D 360 X 1000 X 38MM BORE 1 PHASE
