Swing Over Bed (mm) | 434 |
---|---|
Swing Over X-slide (mm) | 277 |
Swing Over Gap (mm) | 630 |
Between Centres (mm) | 1,500 |
Bed Width (mm) | 300 |
Spindle Nose | D1-6 |
Speeds (no.) | Variable |
Speed Range (rpm) | 20 – 2,000 |
Spindle Bore (mm) | 58 |
Spindle Taper | MT5 |
Metric Threading (M) | 0.2 – 14 |
Imperial Threading (tpi) | 2 – 72 |
Tailstock Taper | MT4 |
Tool Height (mm) | 25 |
Motor (kW) | 3.75 |
Voltage (V) | 415 |
Weight Nett / Gross (kg) | 1,700 / 1,800 |
Volume | 5.7002cm |
Packing Size L x W x H | 2900 x 1170 x 1680 |
Availability : Enquire Now
Price per Unit
ex-gst
$32,250.00Inc-gst

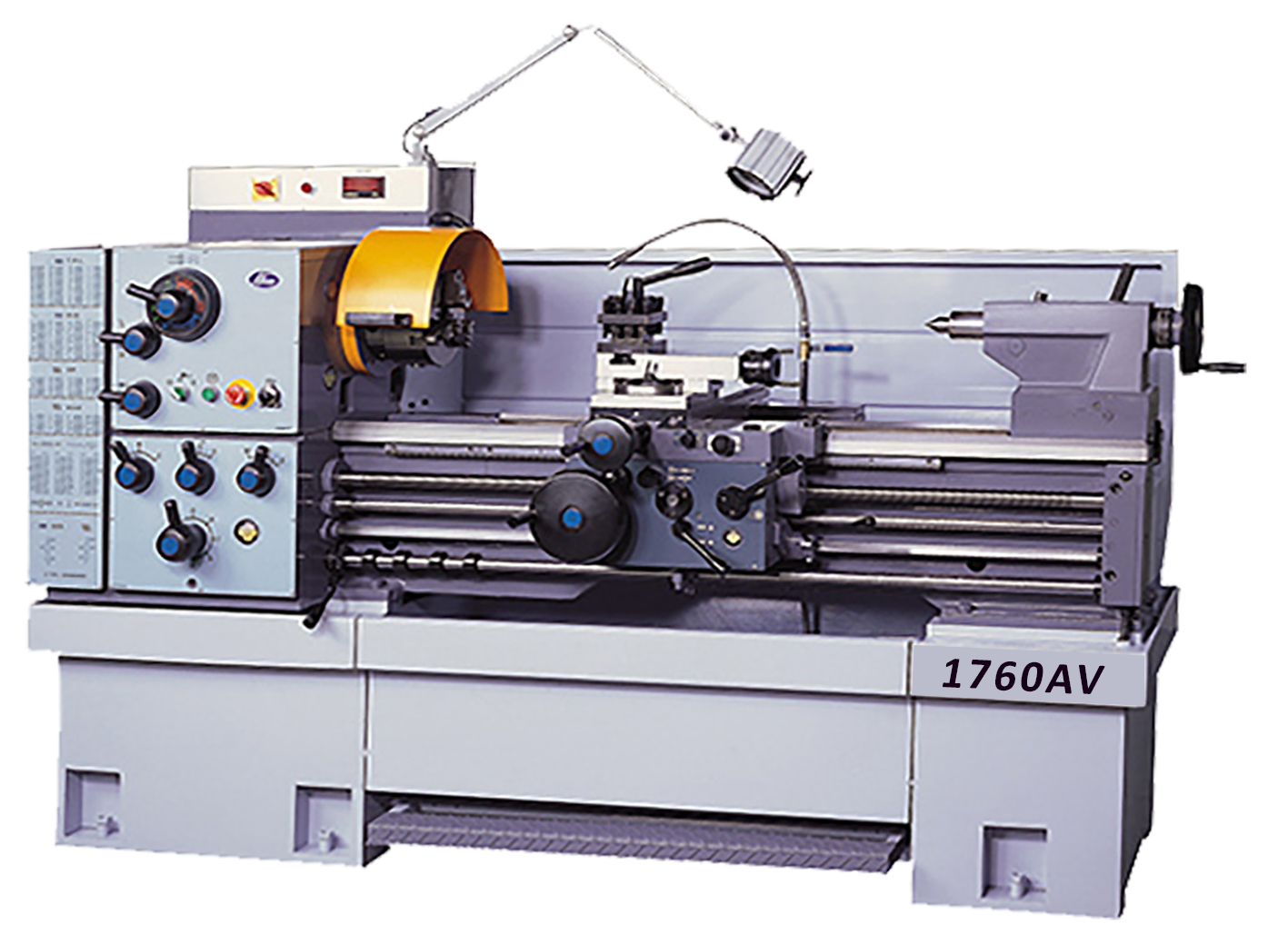

$37,087.50LATHE: GOSAN 1760AV VARIABLE SPEED
Description
SKU : L--109182
Price per Unit
$32,250.00 (Exc GST)
$37,087.50 (Inc GST)
FEATURES:
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
Weight | 1800 kg |
---|---|
Dimensions | 2.9 × 1.17 × 1.68 cm |
Specifications
Description
Reviews (0)
Be the first to review “LATHE: GOSAN 1760AV VARIABLE SPEED” Cancel reply
Shipping & Delivery
