| Swing Over Bed (mm) | 510 |
|---|---|
| Swing Over X-slide (mm) | 342 |
| Swing Over Gap (mm) | 730 |
| Between Centres (mm) | 1,500 |
| Bed Width (mm) | 330 |
| Spindle Nose | D1-8 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 10 – 2,000 |
| Spindle Bore (mm) | 86 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.2 – 14 |
| Imperial Threading (tpi) | 2 – 72 |
| Tailstock Taper | MT5 |
| Tool Height (mm) | 25 |
| Motor (kW) | 7.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2,100 / 2,200 |
| Volume | |
| Packing Size L x W x H (mm) |

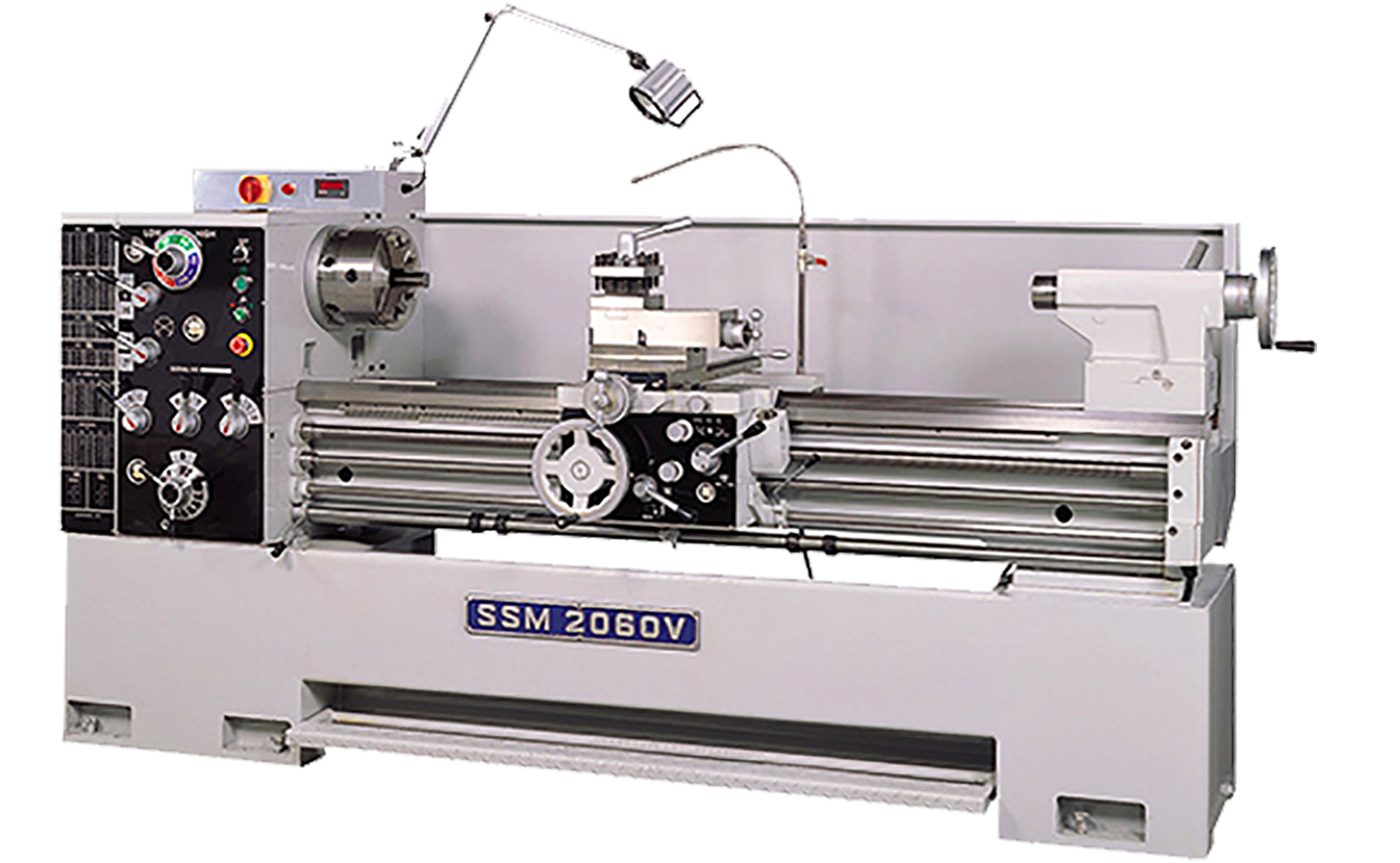

Description
SKU : L--109234
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
| Weight | 2200 kg |
|---|
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: GOSAN TURNPOWER 1440V 3PH VARIABLE SPEED
SKU:
L--109152
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 1740A 7.5HP
SKU:
L--109170
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: JESSEY STUDTURN 1430 (TAIWAN)
SKU:
L--110140
* Rigid construction beds are induction hardened and precision ground.
* Harden and ground spindle & gears in headstock for high speed running with low noise.
* Optional two-speed motor with 16 speeds, 35 - 2000rpm.
* Optional variable speed motor, 35 - 2500rpm.
* Smooth, easy speed change selection.
* Feed rod fitted with an overload clutch for safety.
* Comprehensive range of metric, imperial, diametral & modular threads.
* Fitted with 2 axis digital readout & quickchange toolpost.
* Made in Taiwan.
LATHE: GLH-330 330 X 1000 X 38MM 1 PHASE (NEW)
SKU:
L--120470H
* New Model
* Precision ground and supersonic frequency hardened bedways.
* The spindle is supported with precision roller bearings.
* Head stock gears are made of high quality steel ground and hardened.
* Sealed and easy operating feed box has various feeds and thread cutting functions.
* ASA D1-4 camlock spindle nose.
* Machine is fitted with foot brake & work lamp for extra safety.
* Short bed length and space saving for training institutions.
* Fitted with safety chuck guard.
* Emergency stop buttons both ends of chip tray

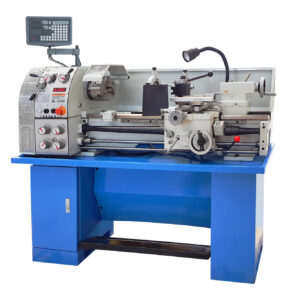

LATHE: BL-336D 300 X 900 X 38MM BORE DRO, 1 PHASE
