| Swing Over Bed (mm) | 510 |
|---|---|
| Swing Over X-slide (mm) | 342 |
| Swing Over Gap (mm) | 730 |
| Between Centres (mm) | 2,000 |
| Bed Width (mm) | 330 |
| Spindle Nose | D1-8 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 10 – 2,000 |
| Spindle Bore (mm) | 86 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.2 – 14 |
| Imperial Threading (tpi) | 2 – 72 |
| Tailstock Taper | MT5 |
| Tool Height (mm) | 25 |
| Motor (kW) | 7.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2,300 / 2,400 |
| Volume | |
| Packing Size L x W x H (mm) |
Description
SKU : L--109238
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
| Weight | 2400 kg |
|---|
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: GOSAN 1440 1PH VARIABLE SPEED
SKU:
L--109150
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 2060AV VARIABLE SPEED
SKU:
L--109234
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.

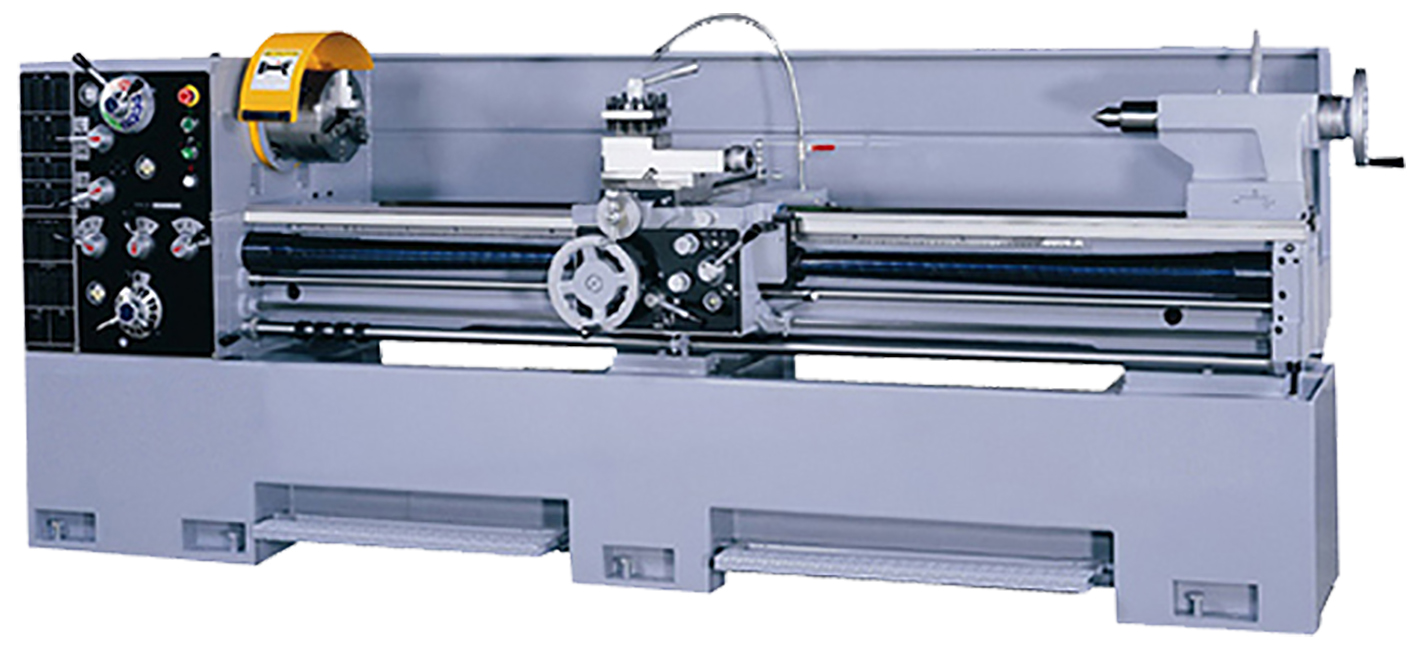

LATHE: GOSAN 2080A 10HP
