| Swing Over Bed (mm) | 356 |
|---|---|
| Swing Over X-slide (mm) | 220 |
| Swing Over Gap (mm) | 515 |
| Between Centres (mm) | 750 |
| Bed Width (mm) | 190 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 45 – 1,800 |
| Spindle Bore (mm) | 40 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.4 – 7.0 |
| Imperial Threading (tpi) | 4 – 56 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 20 |
| Motor (kW) | 2.25 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 750 / 880 |
| Volume | 2.3091cm |
| Packing Size L x W x H (mm) | 1,955 x 762 x 1,550 |
Description

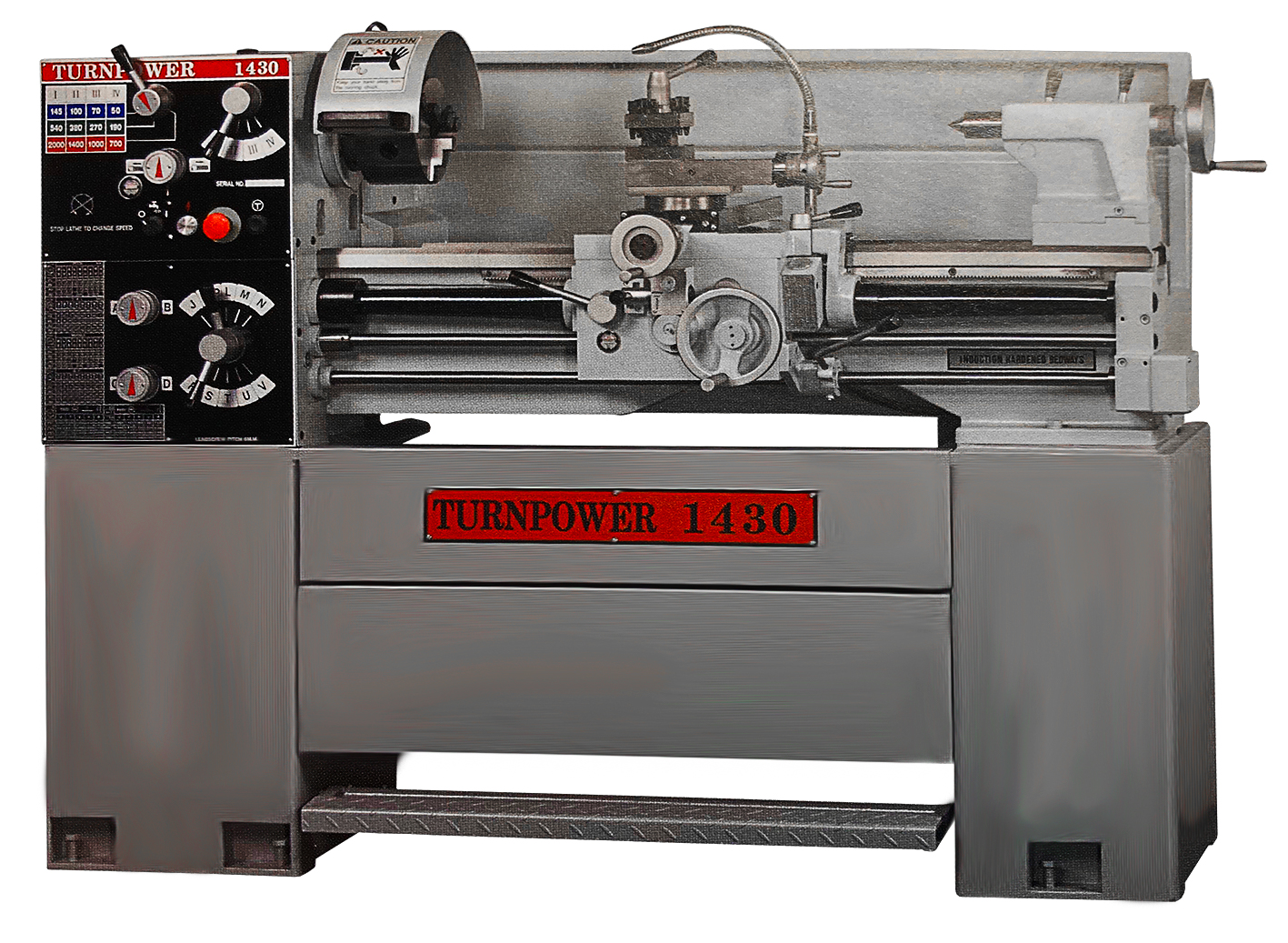

SKU : L--109141
Price per Unit
$16,600.00 (Exc GST)
$19,090.00 (Inc GST)
FEATURES:
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
| Weight | 880 kg |
|---|---|
| Dimensions | 1.955 × 0.762 × 1.55 cm |
