| Swing Over Bed (mm) | 356 |
|---|---|
| Swing Over X-slide (mm) | 220 |
| Swing Over Gap (mm) | 515 |
| Between Centres (mm) | 1,000 |
| Bed Width (mm) | 190 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 45 – 1,800 |
| Spindle Bore (mm) | 40 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.4 – 7.0 |
| Imperial Threading (tpi) | 4 – 56 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 20 |
| Motor (kW) | 2.25 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 750 / 880 |
| Volume | 2.3091cm |
| Packing Size L x W x H (mm) | 1,955 x 762 x 1,550 |
LATHE: GOSAN TURNPOWER 1430 1PHASE
$16,600.00
LATHE: GL-1880 GLOBAL 80MM BORE, 3 PHASE
$29,300.00
Description
SKU : L--109142
Price per Unit
$17,500.00 (Exc GST)
$20,125.00 (Inc GST)
FEATURES:
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
| Weight | 880 kg |
|---|---|
| Dimensions | 1.955 × 0.762 × 1.55 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products

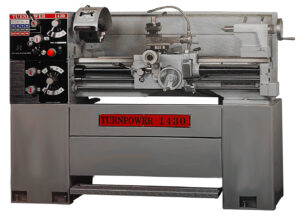

LATHE: GOSAN TURNPOWER 1430 1PHASE
SKU:
L--109141
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 1440 1PH VARIABLE SPEED
SKU:
L--109150
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 1740A 7.5HP
SKU:
L--109170
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: LD-1440E 3 PHASE WITH DRO QCT (TAIWAN)
SKU:
L--109310
* Induction hardened & precision ground V-way beds.
* Hardened & ground headstock gears.
* Cast from quality high tensile cast iron.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Dual graduation thread dial.
* Gap bed for larger diameter work pieces.
* Manufactured in Taiwan.
LATHE: GLH-330 330 X 1000 X 38MM 1 PHASE (NEW)
SKU:
L--120470H
* New Model
* Precision ground and supersonic frequency hardened bedways.
* The spindle is supported with precision roller bearings.
* Head stock gears are made of high quality steel ground and hardened.
* Sealed and easy operating feed box has various feeds and thread cutting functions.
* ASA D1-4 camlock spindle nose.
* Machine is fitted with foot brake & work lamp for extra safety.
* Short bed length and space saving for training institutions.
* Fitted with safety chuck guard.
* Emergency stop buttons both ends of chip tray

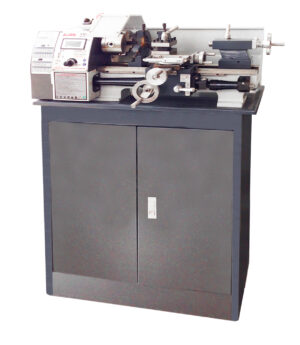

LATHE: WM-180V 180 X 300 X 21MM BORE V/SPEED 1 PHASE
SKU:
L--165180
* Compact lathe with variable speed control.
* Easy to read digital readout speed display.
* Induction hardened & precision ground bedways.
* Forward/reverse & emergency stop switches.
* Tailstock can be offset for turning tapers.
* Transparent toolpost guard.
* Spindle supported by high precision bearings.
* Adjustable slideway gibs.
* Ideal for hobbyists and small workshops.
* Stand is sold seperately.
LATHE: WM-250GN 250 X 500 X 26MM BORE (NEW MODEL) 1 PH
SKU:
L--165262
* New model, one of our most popular lathes with new modifications.
* Induction hardened & precision ground V-way beds.
* Tailstocks can be offset for turning tapers.
* Stand alone coolant pump & tank system.
* Handy LED lamp located in the middle of splashguard.
* Includes change gears for metric & imperial threading.
* Righthand & lefthand thread cutting is available.
* Spindle supported by high precision bearings.
* Adjustable gibs for slideways.
* Also available with powered cross slide & longitudinal feed.
* Stand is sold seperately.
LATHE: WM-250V 250 X 750 X 26MM BORE V/SPEED 1 PHASE
SKU:
L--165270
* V-way bed is hardened & precision ground.
* Spindle is supported by a precision tapered roller bearing.
* MT3 spindle taper gets more capacity.
* Powered longitudinal feed for threading.
* Adjustable gibs for slideways.
* Right land & left hand thread cutting is available.
* Tailstock can be offset for taper turning.
* Equipped with high quality gearbox belt & control board.
* Stand is sold seperately.
