Swing Over Bed (mm) | 390 |
---|---|
Swing Over X-slide (mm) | 240 |
Swing Over Gap (mm) | 610 |
Between Centres (mm) | 1250 |
Bed Width (mm) | 270 |
Spindle Nose | D1-6 |
Speeds (no.) | 16 |
Speed Range (rpm) | 25 – 2000 |
Spindle Bore (mm) | 54 |
Spindle Taper | MT6 |
Metric Threading (M) | 0.2 – 14.0 |
Imperial Threading (tpi) | 2 – 72 |
Spindle Taper | MT4 |
Motor (kW) | 5.625 |
Voltage (V) | 415 |
Weight (kg) | 1,300 |
Volume | 3.268cm |
Packing Size L x W x H (mm) |
Availability : Enquire Now
Price per Unit
ex-gst
$0.00Inc-gst

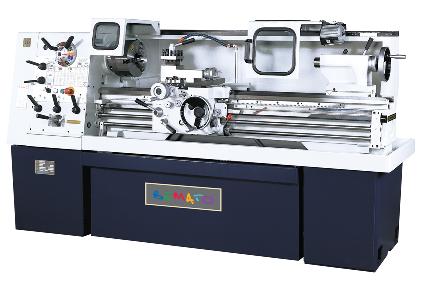

$0.00LATHE: JESSEY CHAMPION 1550 (TAIWAN)
Description
SKU : L--110150
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* Rigid construction beds are induction hardened and precision ground.
* Harden and ground spindle & gears in headstock for high speed running with low noise.
* ‘One shot’ oil pump on saddle provides excellent slideways central lubrication.
* Fitted with 2 axis digital readout & quickchange toolpost.
* Two grouped change levers for 16 spindle speeds.
* Moveable front chip tray allows easy chip cleaning.
* Adjustable apron clutch for bi-directional feed pressure adjustment.
* Comprehensive range of metric, imperial, diametral & modular threads.
* Made in Taiwan.
Weight | 1300 kg |
---|---|
Dimensions | 2.15 × 0.8 × 0.19 cm |
Specifications
Description
Reviews (0)
Be the first to review “LATHE: JESSEY CHAMPION 1550 (TAIWAN)” Cancel reply
Shipping & Delivery
