| Swing Over Bed (mm) | 300 |
|---|---|
| Swing Over X-slide (mm) | 210 |
| Swing Over Gap (mm) | N/A |
| Between Centres (mm) | 600 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 60 – 1,600 |
| Spindle Bore (mm) | 38 |
| Metric Threading (M) | 0.5 – 4.0 |
| Imperial Threading (tpi) | 9 – 40 |
| Spindle Taper | 5MT |
| Spindle Taper | MT3 |
| Tool Height (mm) | 12 |
| Motor (kW) | 1.1 |
| Voltage (V) | 230 |
| Voltage (V) | 1.12 |
| Weight Nett / Gross (kg) | 240 / 300 |
| Volume | |
| Packing Size L x W x H (mm) |
Description
SKU : L--120502
Price per Unit
$5,200.00 (Exc GST)
$5,980.00 (Inc GST)
FEATURES:

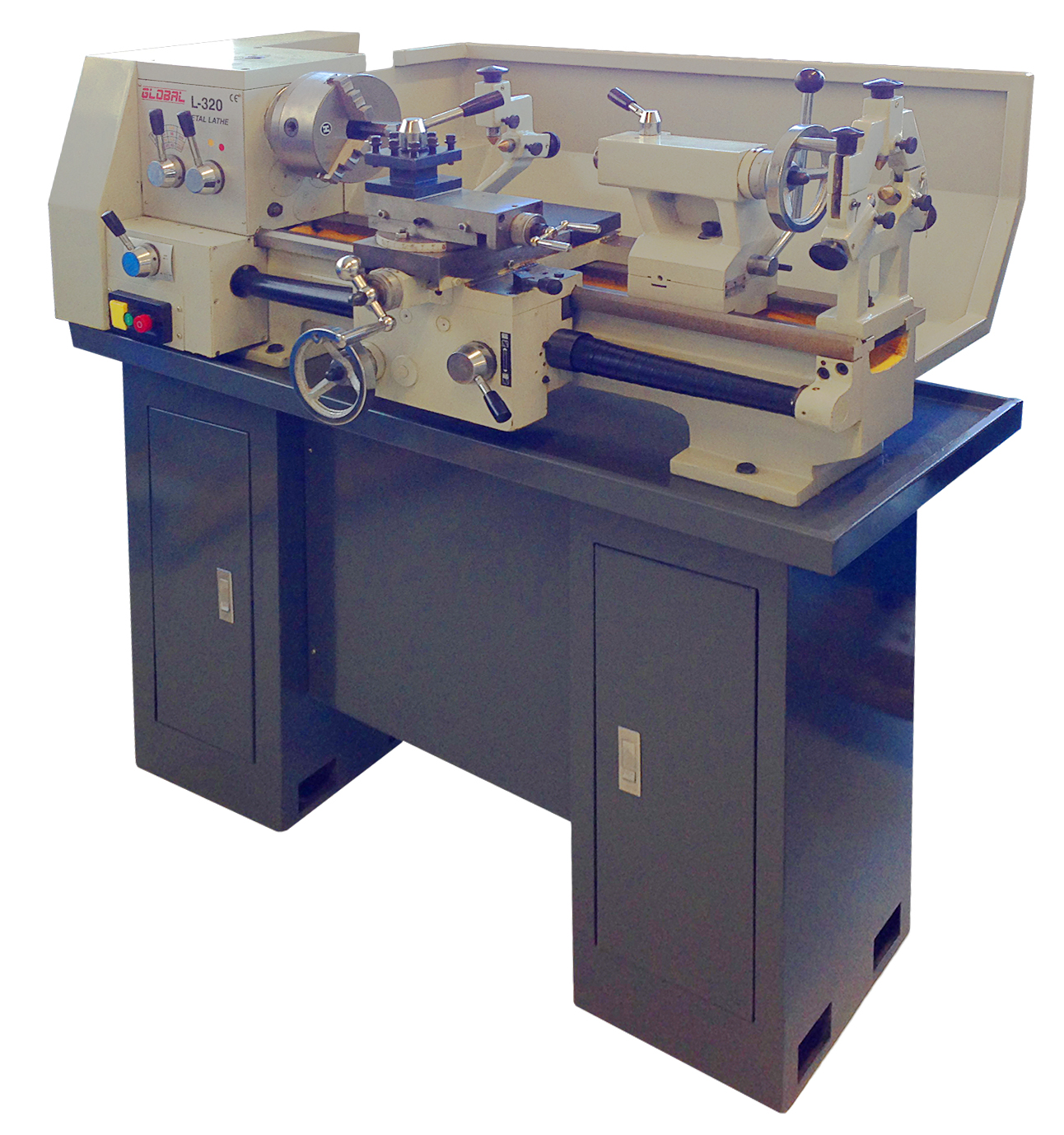

* The L-320 is an excellent small lathe for home or work.
* Easy to change gear levers on front panel metric & imperial threading on front dial.
* Bed is hardened and precision ground for accuracy and durability.
* Fitted with chuck guard and leadscrew covers.
* Stand not included.
| Weight | 240 kg |
|---|
