| Swing Over Bed (mm) | 560 |
|---|---|
| Swing Over X-slide (mm) | 390 |
| Swing Over Gap (mm) | 730 |
| Between Centres (mm) | 1,100 |
| Spindle Nose | D1-8 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 25 – 1,540 |
| Spindle Taper | MT7 |
| Spindle Bore (mm) | 80 |
| Metric Threading (M) | 0.2 – 14 |
| Imperial Threading (tpi) | 2 – 72 |
| Tailstock Taper | MT5 |
| Motor (kW) | 5.625 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 1900 / 2100 |
| Volume (m³) | 4.675 |
| Packing Size L x W x H (mm) | 2,500 x 1,100 x 1,700 |
Description
SKU : L--110250
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:

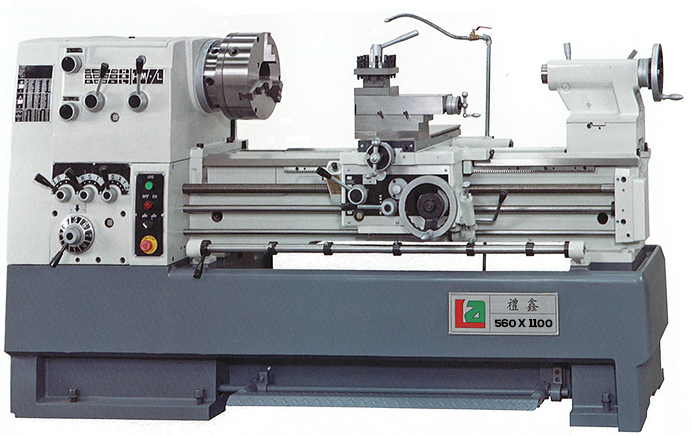

* This LA lathe is manufactured to exacting standards.
* Heavy duty with full cast bed.
* Good speed range and gap bed.
* Right hand wheel.
* Fitted with digital readout and quickchange toolpost.
* Made in Taiwan.
| Weight | 2100 kg |
|---|---|
| Dimensions | 2.5 × 1.1 × 1.7 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: L22 GM6256 560 X 1000 X 80MM BORE
SKU:
L--120028
* Precision ground & supersonic frequency hardened bedways, with double wall structure for super rigidity.
* Highly accurate & rigid spindle system.
* Optimized design of the main drive, with hardened & ground headstock gears.
* Fitted with 2 axis digital readout, taper turning attachment & quickchange toolpost.
* Over 200 thread cutting options available, in metric, whitworth, module & DP, with no gear changing required.
* Adjustable auto stop mechanism for longitudinal travel.
* Gap bed for larger diameter work pieces.
LATHE: L22 GM6256 560 X 1500 X 80MM BORE
SKU:
L--120029
* Precision ground & supersonic frequency hardened bedways, with double wall structure for super rigidity.
* Highly accurate & rigid spindle system.
* Optimized design of the main drive, with hardened & ground headstock gears.
* Fitted with 2 axis digital readout, taper turning attachment & quickchange toolpost.
* Over 200 thread cutting options available, in metric, whitworth, module & DP, with no gear changing required.
* Adjustable auto stop mechanism for longitudinal travel.
* Gap bed for larger diameter work pieces.
LATHE: L26 GM6266 660 X 2000 X 105MM BORE (DISCONTINUED)
SKU:
L--120035
* This L26 offers precision ground & supersonic frequency hardened bedways designed in double wall structure giving super rigidity.
* Extra large 105mm spindle bore with good rigidity as well as accuracy.
* Optimised design of the main drive & gears in the headstock are precision ground.
* Lathe can turn up to 200 kinds of metric whitworth module & DP threads without changing gears.
* Auto stop device and footbrake for quick & effective stopping.
LATHE: L-6266A 660 X 3000 X 105MM BORE
SKU:
L--120425
* This lathe sits on a heavy cast iron base with hardened & ground headstock headstock gears and bedway.
* 105mm spinlde bore allows for large diameter shafts to pass through the headstock.
* Very heavy machine and rigid under all conditions.
* Rapid feeds and left hand wheel.
* Huge range of thread cutting available.
* Fitted with Sino 2 axis digital readout, taper turning attachment & quickchange toolpost.
* Coming from one of the best lathe factories in China, this machine will produce high quality components.
LATHE: D-660 660 X 3000 x 105MM BORE Optiturn
SKU:
L--120426
* This lathe sits on a heavy cast iron base with hardened & ground headstock headstock gears and bedway.
* 105mm spinlde bore allows for large diameter shafts to pass through the headstock.
* Very heavy machine and rigid under all conditions.
* Rapid feeds and left hand wheel.
* Huge range of thread cutting available.
* Fitted with Sino 2 axis digital readout, taper turning attachment & quickchange toolpost.
* Coming from one of the best lathe factories in China, this machine will produce high quality components.
LATHE: PA-35 X 3000 PROKING (TAIWAN)
SKU:
L--120437
* This ProKing Taiwanese lathe comes in many different configurations.
* Bed is one piece casting.
* All ways are hardened and precision ground.
* Alloy steel spindle with roller bearings.
* All gears and shafts are herdened and ground.
* Electromagnetic spindle brake.
* Fitted with 6 way rapid traverse and power feed to topslide.
* Totally enclosed universal inch/metric gearbox.
* Pressurised one shot lubrication system for cross slide and carriage.
LATHE: C6266C 660 X 2000 X 105MM BORE
SKU:
L--120441
* Supersonic frequency hardened bedways.
* Hardened & ground headstock gears.
* Triple headstock spindle bearings.
* 105mm spindle bore for turning large shafts.
* Fitted with a powerful 9kW motor.
* No gear changing required to cut metric & imperial threads.
* Fitted with Sino 2 axis digital readout, taper turning attachment & quickchange toolpost.
LATHE: C6266C 660 X 3000 X 105MM BORE
SKU:
L--120442
* Supersonic frequency hardened bedways.
* Hardened & ground headstock gears.
* Triple headstock spindle bearings.
* 105mm spindle bore for turning large shafts.
* Fitted with a powerful 9kW motor.
* No gear changing required to cut metric & imperial threads.
* Fitted with Sino 2 axis digital readout, taper turning attachment & quickchange toolpost.
