| Swing Over Bed (mm) | 280 |
|---|---|
| Swing Over X-slide (mm) | 280 |
| Swing Over Gap (mm) | N/A |
| Between Centres (mm) | 650 |
| Bed Width (mm) | 180 |
| Spindle Nose | Threaded |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 70 – 2,000 |
| Spindle Bore (mm) | 26 |
| Spindle Taper | MT4 |
| Metric Threading (M) | (18) 0.25 – 5.0mm |
| Imperial Threading (tpi) | (13) 6 – 96tpi |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 12 |
| Motor (kW) | 0.75 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 250/280 |
| Volume (m³) | 17.850 |
| Packing Size L x W x H (mm) | 1,750 x 750 x 1,400 |
Description
SKU : L--165278
Price per Unit
$3,950.00 (Exc GST)
$4,542.50 (Inc GST)
FEATURES:

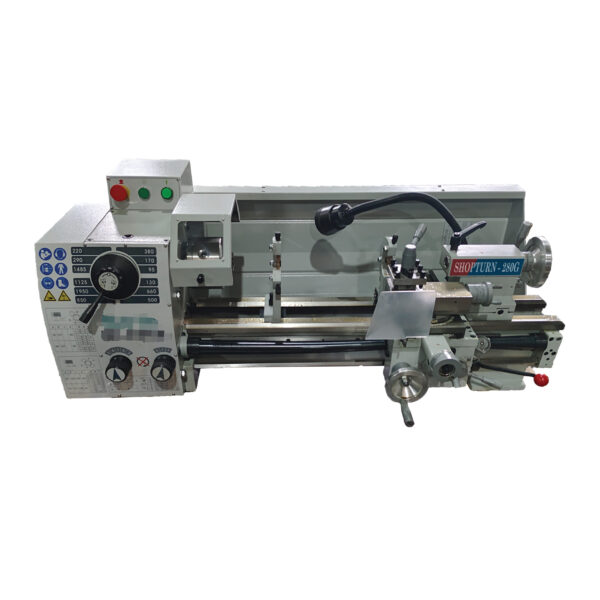

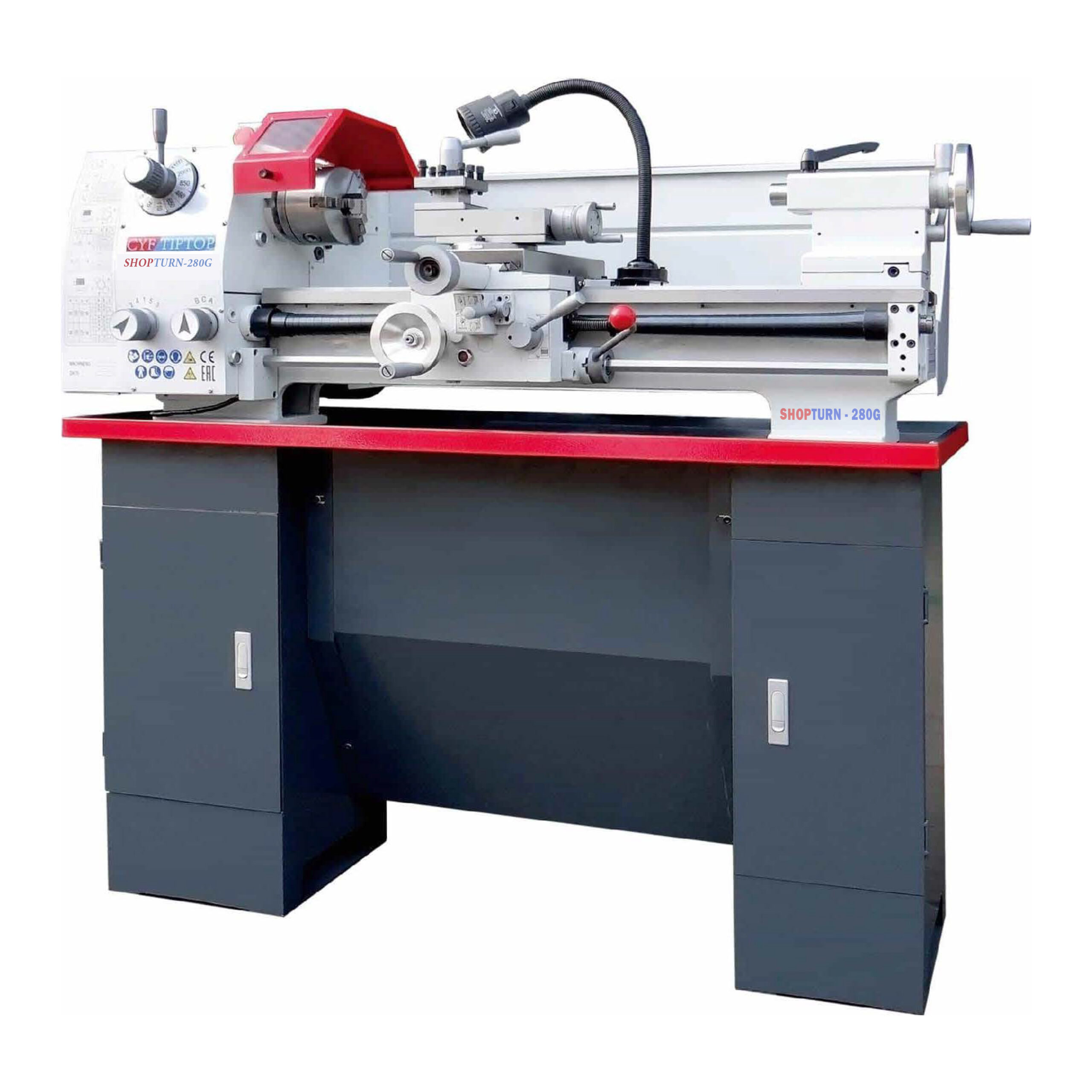

* Compact lgeared Head Lathe with 12 speed precision ground gears
* Induction hardened & precision ground bedways.
* Headstock is gear driven in oil bath.
* Forward/reverse & emergency stop switches.
* Tailstock can be offset for turning tapers.
* Covered leadscrews & limit switches for safety.
* Metric & imperial threading dial indicator.
* Extra wide bedway for more capacity.
* Ideal for hobbyists and small workshops.

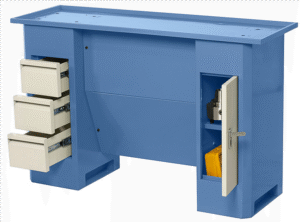

* Stand is sold seperately.
