Swing Over Bed (mm) | 180 |
---|---|
Swing Over X-slide (mm) | 110 |
Swing Over Gap (mm) | No Gap |
Between Centres (mm) | 300 |
Bed Width (mm) | 100 |
Spindle Nose | Threaded |
Speeds (no.) | Variable |
Speed Range (rpm) | 50 – 2,500 |
Spindle Bore (mm) | 21 |
Spindle Taper | MT3 |
Metric Threading (M) | 0.5 – 3.0 |
Imperial Threading (tpi) | 10 – 44 |
Tailstock Taper | MT2 |
Tool Height (mm) | 10 |
Motor (kW) | 0.45 |
Voltage (V) | 230 |
Weight Nett / Gross (kg) | 60/75Kgs |
Volume (m³) | 0.176m³ |
Packing Size L x W x H (mm) | 800 x 460 x 480mm |
Availability : Enquire Now
Price per Unit
ex-gst
$1,900.00Inc-gst

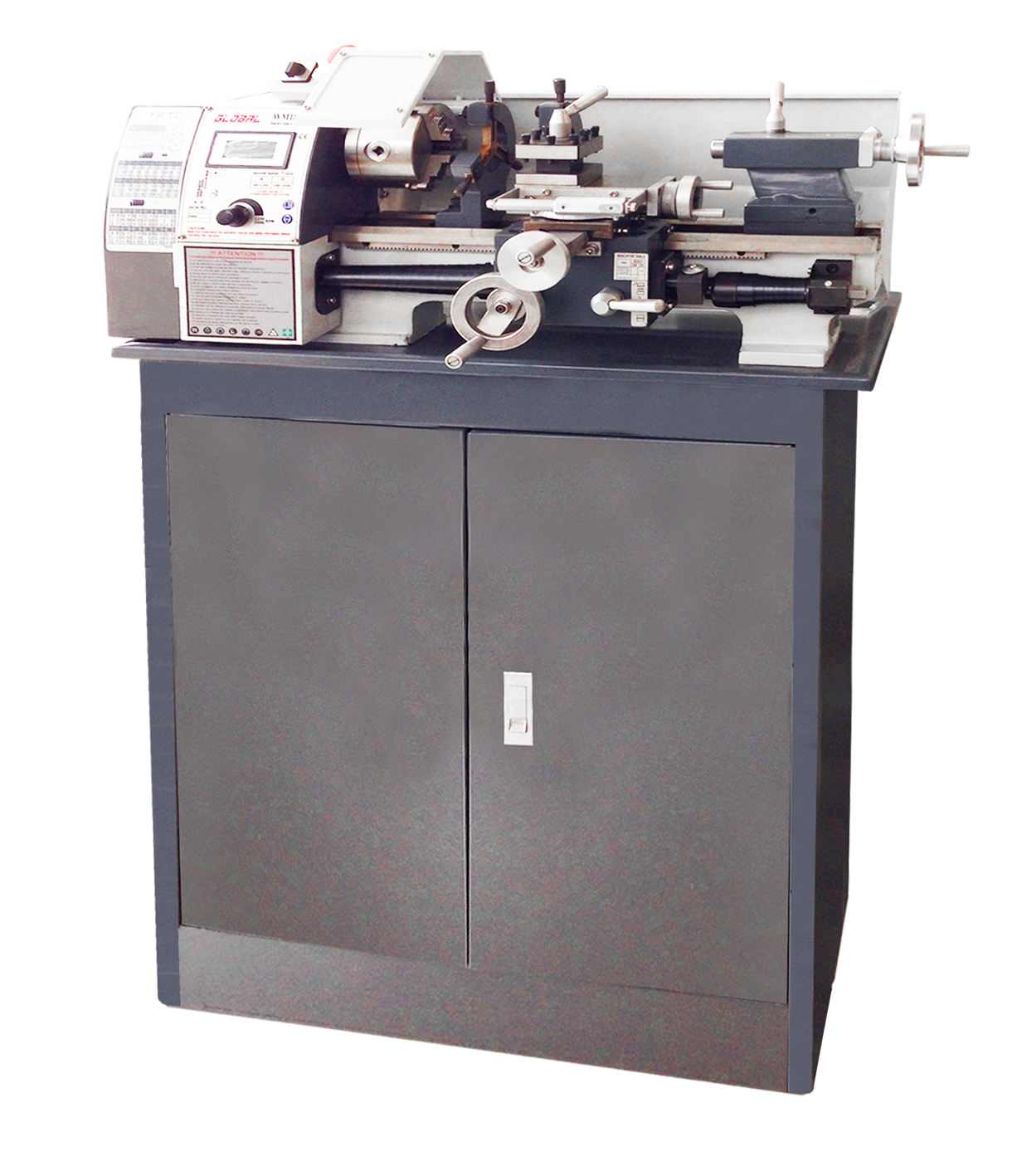

$2,185.00LATHE: WM-180V 180 X 300 X 21MM BORE V/SPEED 1 PHASE
Description
SKU : L--165180
Price per Unit
$1,900.00 (Exc GST)
$2,185.00 (Inc GST)
FEATURES:
* Compact lathe with variable speed control.
* Easy to read digital readout speed display.
* Induction hardened & precision ground bedways.
* Forward/reverse & emergency stop switches.
* Tailstock can be offset for turning tapers.
* Transparent toolpost guard.
* Spindle supported by high precision bearings.
* Adjustable slideway gibs.
* Ideal for hobbyists and small workshops.
* Stand is sold seperately.
Weight | 68 kg |
---|---|
Dimensions | 1.12 × 0.8 × 0.45 cm |
