| Swing Over Bed (mm) | 250 |
|---|---|
| Swing Over X-slide (mm) | 150 |
| Swing Over Gap (mm) | N/A |
| Between Centres (mm) | 700 |
| Bed Width (mm) | 140 |
| Spindle Nose | Threaded |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 80 – 1,600 |
| Spindle Bore (mm) | 26 |
| Spindle Taper | MT3 |
| Metric Threading (M) | 0.125 – 5.0 |
| Imperial Threading (tpi) | 4 – 96 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 12 |
| Motor (kW) | 0.75 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 163 / 175 |
| Volume | 0.4680cm |
| Packing Size L x W x H (mm) | 1,200x 600 x 650 |

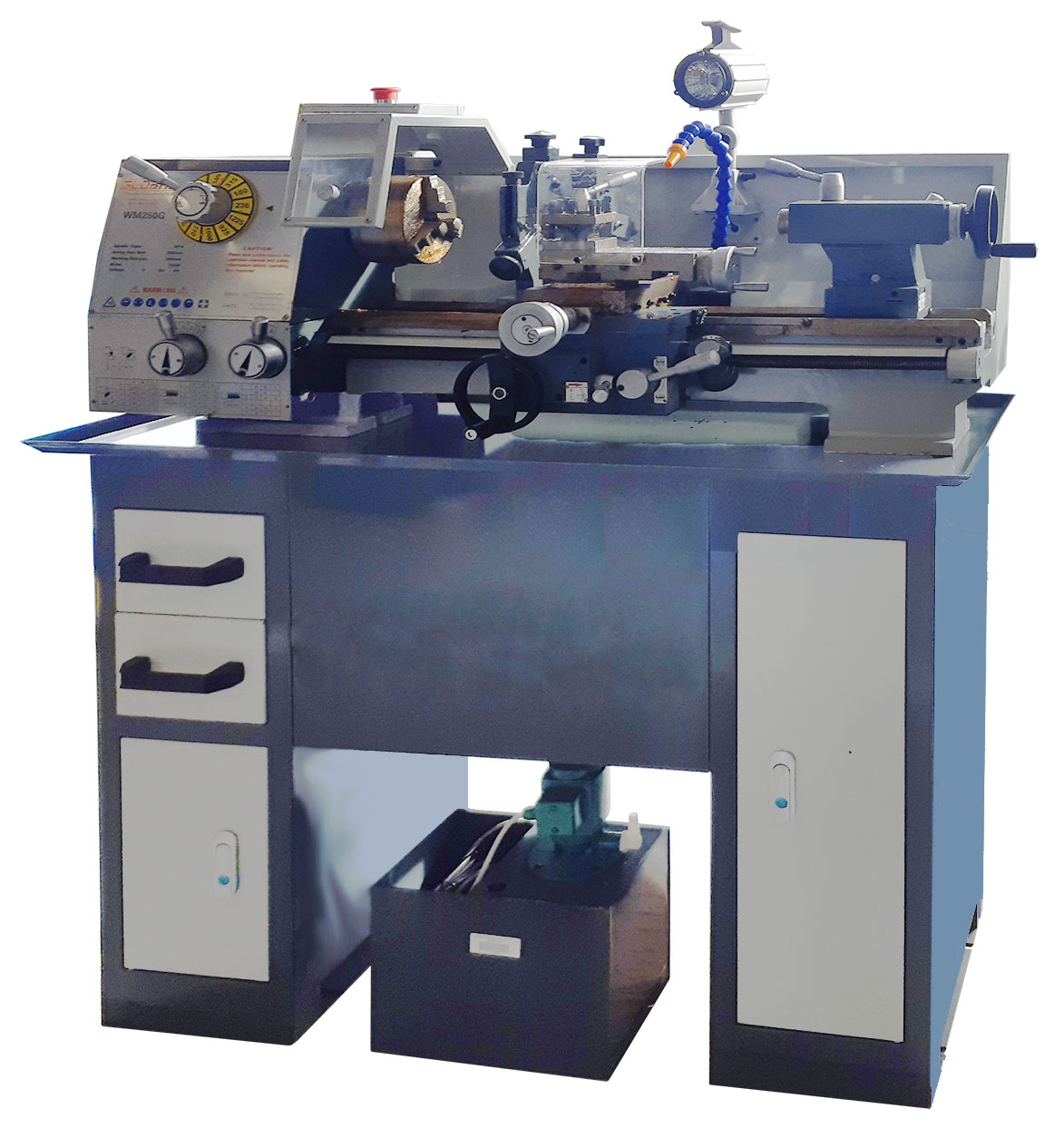

Description
SKU : L--165264
Price per Unit
$3,900.00 (Exc GST)
$4,485.00 (Inc GST)
FEATURES:
* New model, one of our most popular lathes with new modifications and a longer bed.
* Induction hardened & precision ground V-way beds.
* Power cross slide and longitudinal feed.
* Tailstocks can be offset for turning tapers.
* Stand alone coolant pump & tank system.
* Handy LED lamp located in the middle of splashguard.
* Includes change gears for metric & imperial threading.
* Righthand & lefthand thread cutting is available.
* Spindle supported by high precision bearings.
* Adjustable gibs for slideways.
* Stand is sold seperately.
