Swing Over Bed (mm) | 280 |
---|---|
Swing Over X-slide (mm) | 165 |
Swing Over Gap (mm) | N/A |
Between Centres (mm) | 700 |
Bed Width (mm) | 180 |
Spindle Nose | MT5 |
Speeds (no.) | Variable |
Speed Range (rpm) | 50 – 2,000 |
Spindle Bore (mm) | 38 |
Spindle Taper | MT5 |
Metric Threading (M) | 0.2 – 3.5 |
Imperial Threading (tpi) | 8 – 56 |
Cross Feeds (mm/r) | 0.02 – 0.28 |
Longitudinal Feeds (mm/r) | 0.07 – 0.4 |
Tailstock Taper | MT3 |
Tool Height (mm) | 12 |
Motor (kW) | 1.1 (DC) |
Voltage (V) | 230 |
Weight Nett / Gross (kg) | 235 / 250 |
Volume (m³) | 0.686 |
Availability : Enquire Now
Price per Unit
ex-gst
$5,250.00Inc-gst

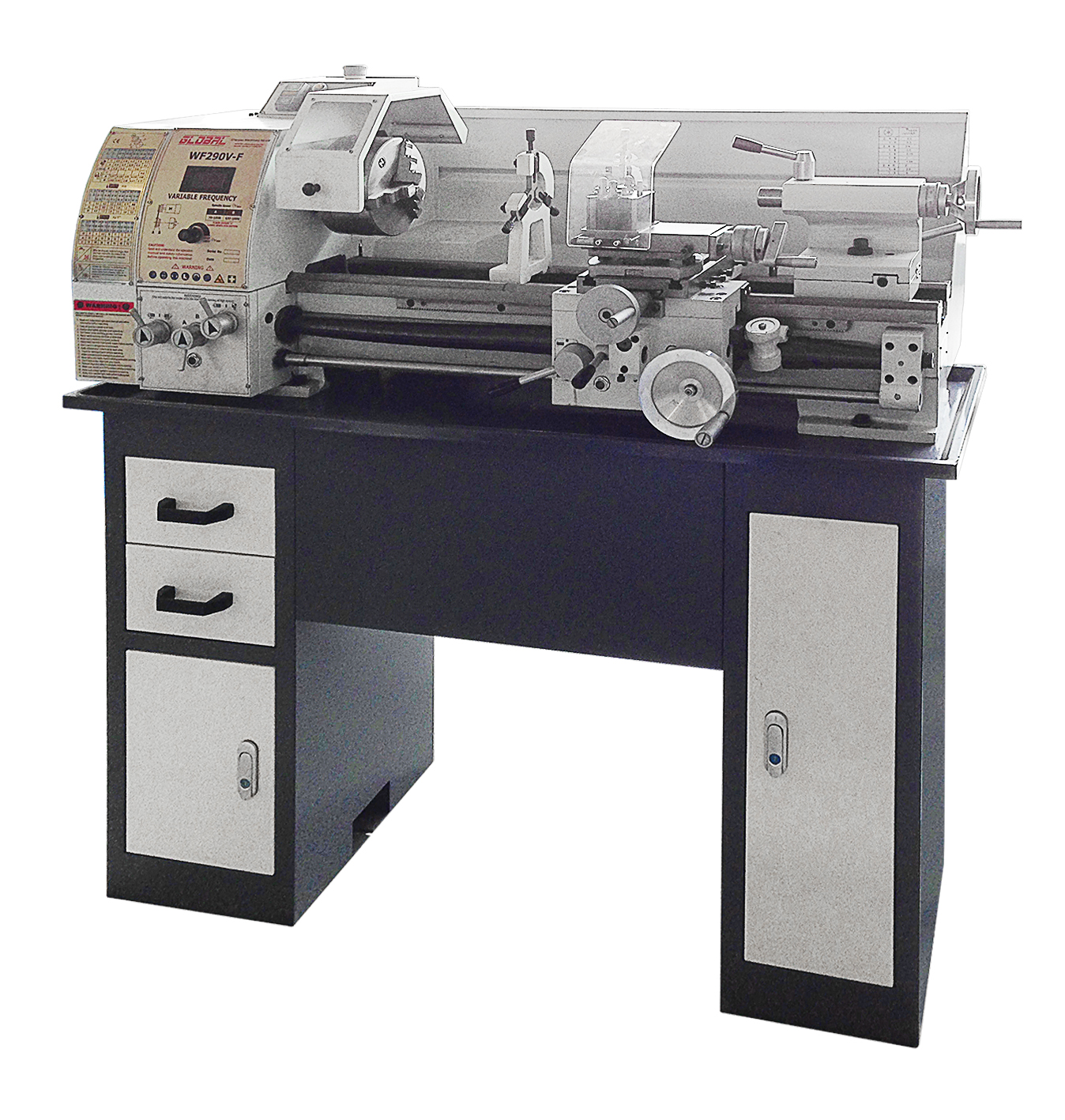

$6,037.50LATHE: WM-290V-F 290 X 700 X 38MM BORE V/SPEED DC MTR
Description
SKU : L--165288
Price per Unit
$5,250.00 (Exc GST)
$6,037.50 (Inc GST)
FEATURES:
* The WF290V-F bench lathe is fitted with a delta inverter and viariable speed control.
* Easy to read digital readout speed display.
* Induction hardened & precision ground bedways.
* Forward/reverse & emergency stop switches.
* Tailstock can be offset for turning tapers.
* Covered leadscrews & limit switches for safety.
* Longitudinal and cross feeds.
* Automatic feed & threading are fully interlocked.
* Fitted with quickchange toolpost.
* Ideal for hobbyists and small workshops.
* Stand is sold seperately.
Weight | 235 kg |
---|---|
Dimensions | 1.4 × 0.7 × 0.7 cm |
Specifications
Description
Reviews (0)
Be the first to review “LATHE: WM-290V-F 290 X 700 X 38MM BORE V/SPEED DC MTR” Cancel reply
Shipping & Delivery
