| Swing Over Bed (mm) | 330 |
|---|---|
| Swing Over X-slide (mm) | 198 |
| Swing Over Gap (mm) | N/A |
| Between Centres (mm) | 500 |
| Bed Width (mm) | 187 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 8 |
| Speed Range (rpm) | 70 – 2,000 |
| Spindle Bore (mm) | 38 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.4 – 7.0 |
| Imperial Threading (tpi) | 3.5 – 80 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 16 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 500 / 540 |
| Volume | 1.7400cm |
| Packing Size L x W x H (mm) | 1,450 x 750 x 1,600 |
| 7695 |
LATHE: C6266C 660 X 3000 X 105MM BORE
$27,766.00
LATHE: WM330 330 X 750 X 38MM 1 PHASE
$8,900.00
Description
SKU : L--120466
Price per Unit
$8,100.00 (Exc GST)
$9,315.00 (Inc GST)

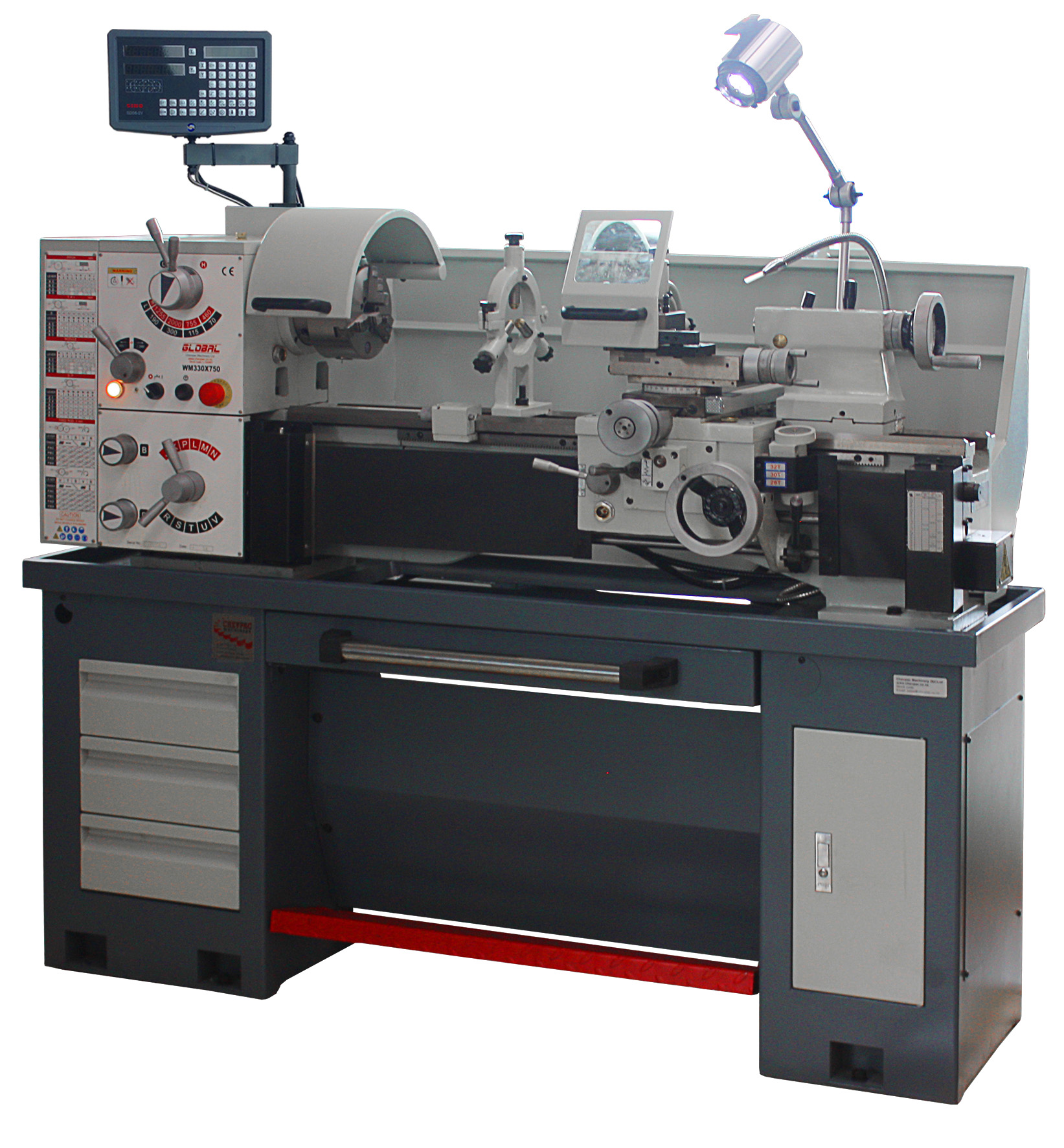

FEATURES:
* Precision ground and supersonic frequency hardened bedways.
* The spindle is supported with precision roller bearings.
* Head stock gears are made of high quality steel ground and hardened.
* Sealed and easy operating feed box has various feeds and thread cutting functions.
* ASA D1-4 camlock spindle nose.
* Machine is fitted with foot brake & work lamp for extra safety.
* Short bed length and space saving for training institutions.
* Fitted with safety chuck guard.
| Weight | 540 kg |
|---|---|
