| Swing Over Bed (mm) | 330 |
|---|---|
| Swing Over X-slide (mm) | 194 |
| Swing Over Gap (mm) | 430 |
| Between Centres (mm) | 750 |
| Bed Width (mm) | 170 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 9 |
| Speed Range (rpm) | 90 – 1,800 |
| Spindle Bore (mm) | 38 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.4 – 7.0 |
| Imperial Threading (tpi) | 4 – 56 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 16 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 340 / 375 |
| Volume | 0.5438cm |
| Packing Size L x W x H (mm) | 1,450 x 760 x 1,500 |
Description

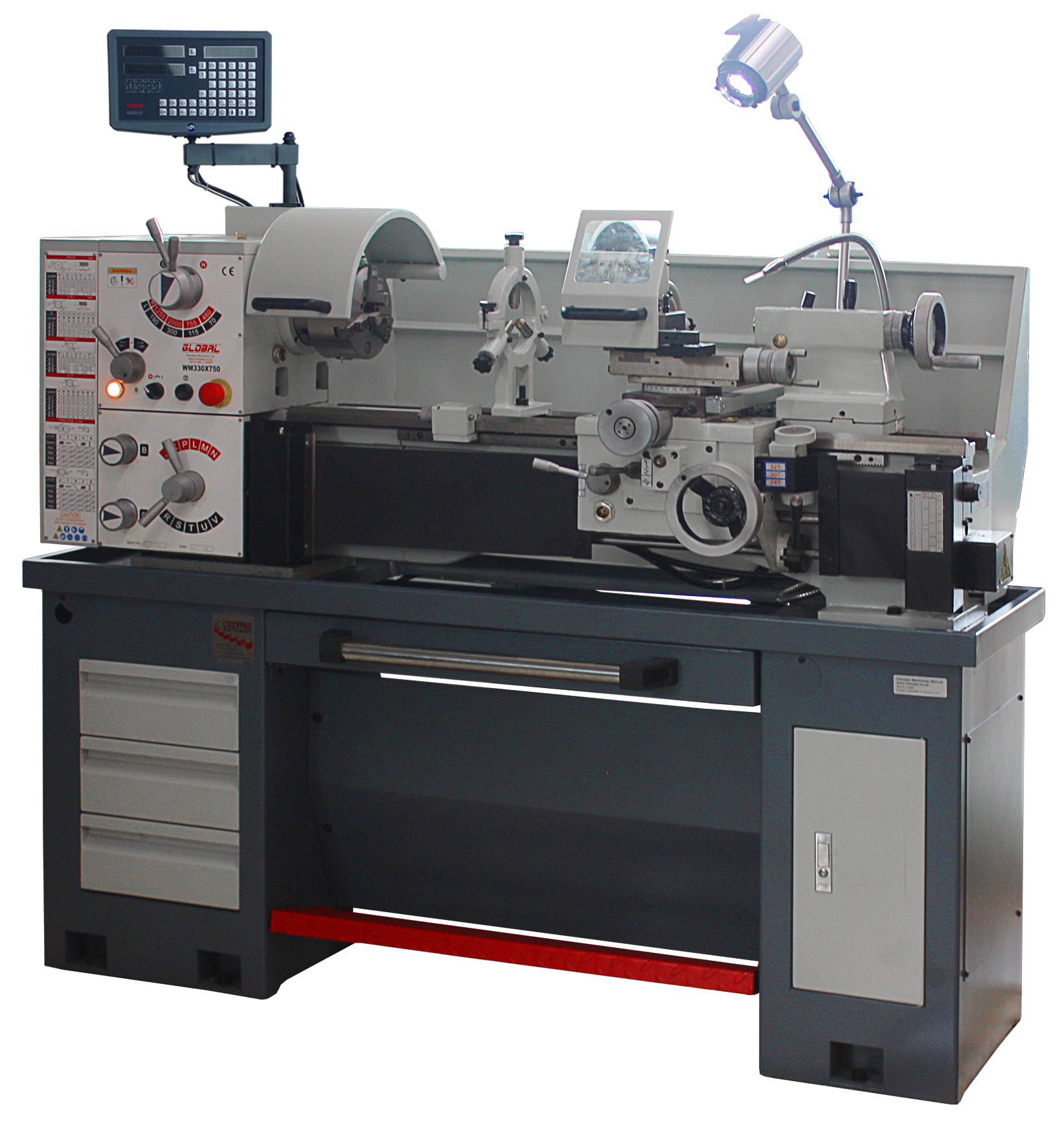

SKU : L--120467
Price per Unit
$8,900.00 (Exc GST)
$10,235.00 (Inc GST)
FEATURES:
* Precision ground and supersonic frequency hardened bedways.
* The spindle is supported with precision roller bearings.
* Head stock gears are made of high quality steel ground and hardened.
* Sealed and easy operating feed box has various feeds and thread cutting functions.
* ASA D1-4 camlock spindle nose.
* Machine is fitted with foot brake & work lamp for extra safety.
* Short bed length and space saving for training institutions.
* Fitted with safety chuck guard.
| Weight | 375 kg |
|---|---|
| Dimensions | 1.45 × 0.75 × 0.5 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: GOSAN 1740A 7.5HP
SKU:
L--109170
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 2060AV VARIABLE SPEED
SKU:
L--109234
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 2080A 10HP
SKU:
L--109236
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: LD-1424E 1 PHASE WITH DRO QCT (TAIWAN)
SKU:
L--109290
* Induction hardened & precision ground V-way beds.
* Hardened & ground headstock gears.
* Cast from quality high tensile cast iron.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Dual graduation thread dial.
* Gap bed for larger diameter work pieces.
* Manufactured in Taiwan.
LATHE: LD-1430E 3 PHASE WITH DRO QCT (TAIWAN)
SKU:
L--109295
* Induction hardened & precision ground V-way beds.
* Hardened & ground headstock gears.
* Cast from quality high tensile cast iron.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Dual graduation thread dial.
* Gap bed for larger diameter work pieces.
* Manufactured in Taiwan.

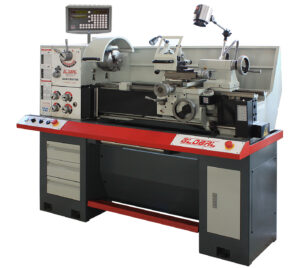

LATHE: GLH-330 330 X 750 X 38MM 1 PHASE (NEW)
