TAPER | MT1 |
---|---|
MANUFACTURER | Skoda ( Czech Republic ) |
CONE TAPER | 60 Degrees |
MAX LOAD | 90kg |
MAX SPEED | 6000rpm |
WEIGHT NETT/GROSS | 0.300/ 0.302kg |
VOLUME | 0.0002cm |
Description
SKU : LLC625990
Price per Unit
$121.00 (Exc GST)
$139.15 (Inc GST)
FEATURES:

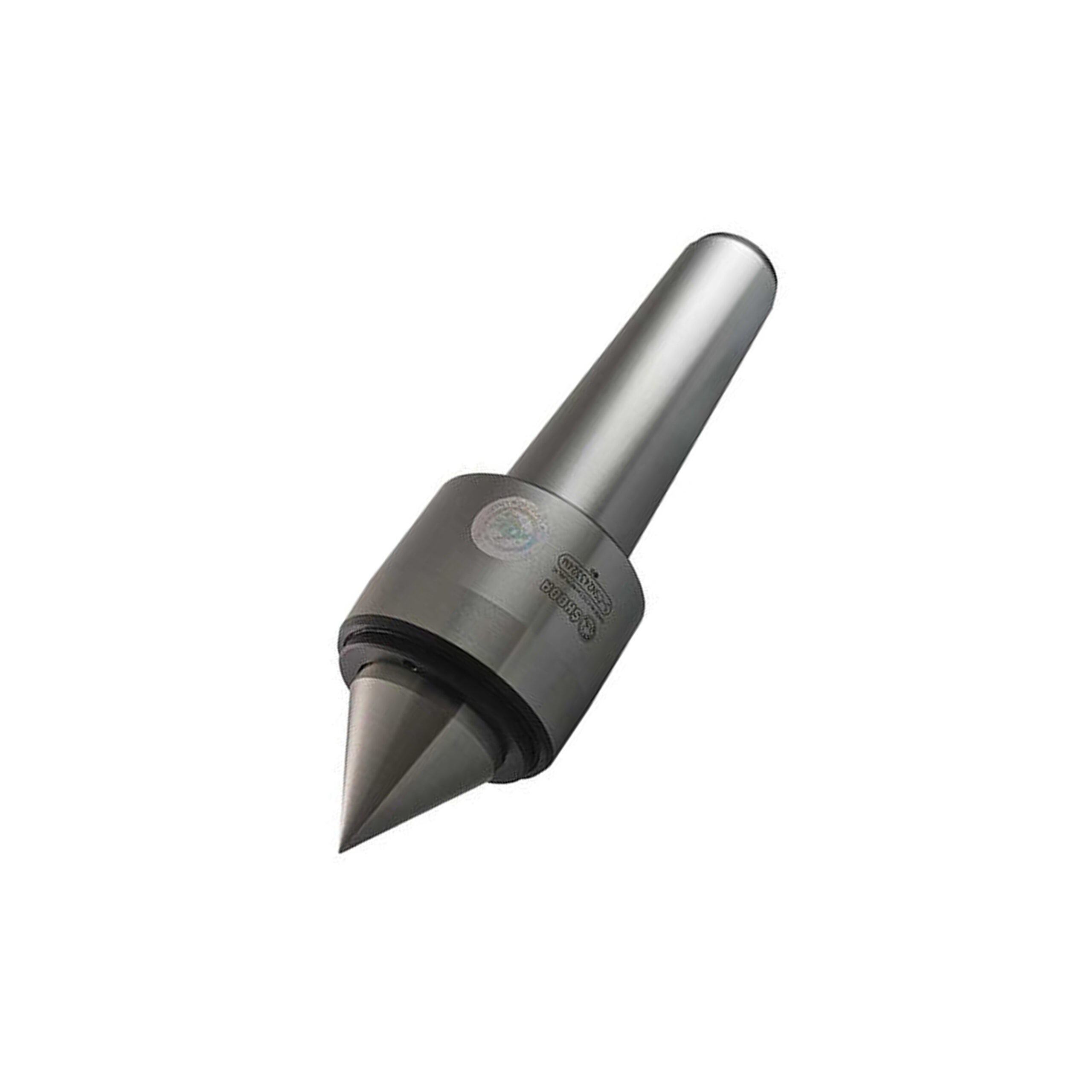

* These Skoda live centres are known for their quality and long service record
* European quality – manufactured in the Czech Republic
* Skoda factory which has a long history of manufacturing quality products
* The rotating spindle is extended right through the tapered shank.
* Two specially designed adjustable needle-roller bearings carry all radial loads.
* A heavy duty ball thrust bearing takes all axial thrust.
* Thermal expansion and shock loads are absorbed by a special compensator spring.
* Complete protection of bearings from the ingress of coolant, dirt or swarf is provided by the built-in oil seal, which also prevents loss of lubricant.
Weight | 0.3 kg |
---|---|
Dimensions | 0.16 × 0.04 × 0.04 cm |
