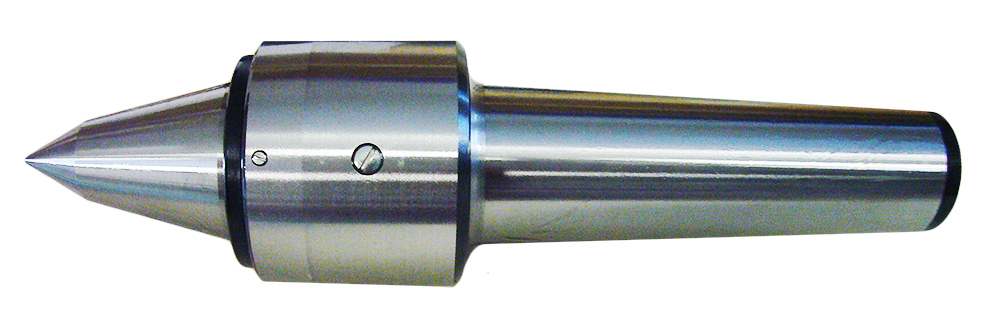

DESCRIPTIOM | Extended Point Live Centre |
---|---|
SHANK TAPER | MT2 |
CONE TAPER | 60Deg |
MAX LOAD | 270kg |
MAX SPEED | 6000rpm |
WEIGHT NETT/GROSS | 0.389/0.391kg |
VOLUME | 0.0003cm |
SKU : LLC9105050
Price per Unit
$205.00 (Exc GST)
$235.75 (Inc GST)
FEATURES:
* This quality extended point live centre is manufactured in the Czech Republic
* Hardened and precision ground to 60-65RC
* Skoda live centres are known for their quality and long service record
* European quality – manufactured in the Czech Republic
* Skoda factory which has a long history of manufacturing quality products
* The rotating spindle is extended right through the tapered shank.
* Two specially designed adjustable needle-roller bearings carry all radial loads.
* A heavy duty ball thrust bearing takes all axial thrust.
* Thermal expansion and shock loads are absorbed by a special compensator spring.
* Complete protection of bearings from the ingress of coolant, dirt or swarf is provided by the built-in oil seal, which also prevents loss of lubricant.
Weight | 0.391 kg |
---|---|
Dimensions | 0.16 × 0.04 × 0.04 cm |
