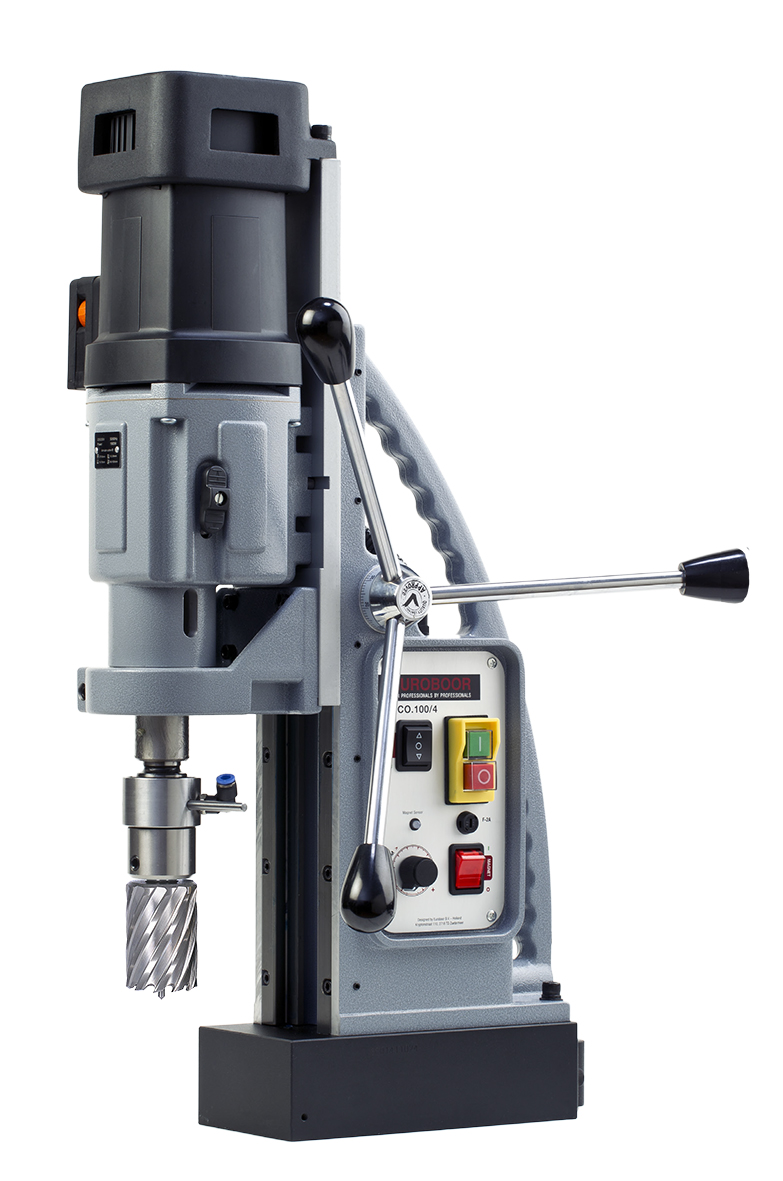

| Brand | Euroboor |
|---|---|
| Model | EC0-100/4 |
| Cap. Annular Cutters (mm) | 100 |
| Cap. Twist Drills (mm) | 32 |
| Cap. Countersinking (mm) | 105 |
| Threading (M) | M30 |
| Stroke (mm) | 260 |
| Weight (kg) | 28 |
| Magnet L x W (mm) | 220 x 110 |
| Magnetic Force (kg) | 3,000 |
| Speeds (no.) | Variable |
| No-Load Speed (rpm) | 42 – 620 |
| Load Speed (rpm) | 85 – 420 |
| Spindle | MT3 / Weldon |
| Voltage (V) | 240 |
| Motor Power (kW) | 1.9 |
| Weight Nett/Gross (kg) | 30 |
| Volume (cm) | 0.0015 |
| Packing Size L x W x H |
Description
SKU : DSM360434
Price per Unit
$4,769.00 (Exc GST)
$5,484.35 (Inc GST)
FEATURES:
* Euorbor ECO 100/4 Magnetic Drilling system with 1.9kW motor to cope with the heaviest of work.
* The automatic drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* This model features LED load indicator with oil bath gearbox
* Spindle is MT3.
* Comes with 12 month warranty
| Weight | 30 kg |
|---|---|
| Dimensions | 0.22 × 0.11 × 0.064 cm |
Specifications
