| Brand | Euroboor |
|---|---|
| Model | EC0-200 |
| Cap. Annular Cutters (mm) | 200 |
| Cap. Twist Drills (mm) | 44 |
| Cap. Countersinking (mm) | 205 |
| Threading (M) | N/A |
| Stroke (mm) | 180 |
| Weight (kg) | 53 |
| Magnet L x W (mm) | 330 x 110 |
| Magnetic Force (kg) | 3,900 |
| Speeds (no.) | 2 |
| No-Load Speed (rpm) | 170 – 410 |
| Load Speed (rpm) | 70 – 170 |
| Spindle | MT4 |
| Voltage (V) | 240 |
| Motor Power (kW) | 3.6 |
| Weight Nett/Gross (kg) | 30 |
| Volume (cm) | 0.0015 |
| Packing Size L x W x H |
Description
SKU : DSM360434B
Price per Unit
$17,000.00 (Exc GST)
$19,550.00 (Inc GST)
FEATURES:

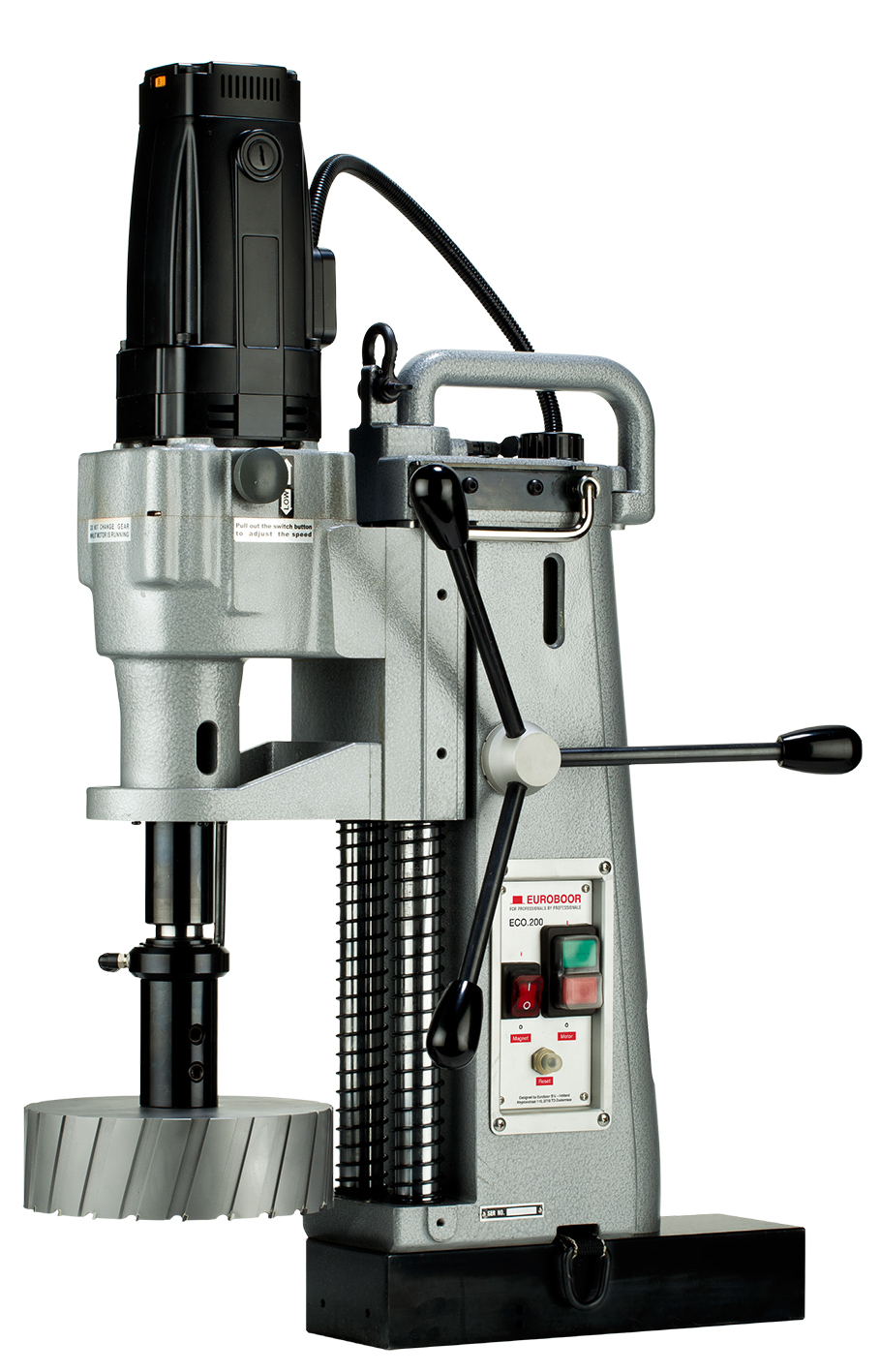

* Euorbor ECO 200 heavy duty magnetic drilling system with 3.6kW motor to cope with the heaviest of work.
* The automatic drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* Integrated safety strap and lifting shackle
* Spindle is MT4.
* Comes with 12 month warranty
| Weight | 30 kg |
|---|---|
| Dimensions | 0.22 × 0.11 × 0.064 cm |
