| Brand | Euroboor |
|---|---|
| Model | EC0 50S |
| Cap. Annular Cutters (mm) | 50 |
| Cap. Twist Drills (mm) | 23 |
| Cap. Countersinking (mm) | 55 |
| Threading (M) | NIL |
| Stroke (mm) | 170 |
| Weight (kg) | 11.2 |
| Magnet L x W (mm) | 160 x 80 x 42 |
| Magnetic Force (kg) | 1,700 |
| Speeds (no.) | 2 |
| No-Load Speed (rpm) | 315 / 690 |
| Load Speed (rpm) | 235 / 425 |
| Spindle | MT3 / Weldon 19.05mm |
| Voltage (V) | 240 |
| Motor Power (kW) | 1.25 |
| Weight Nett/Gross | |
| Volume | |
| Packing Size L x W x H |
Sold out
Description
SKU : DSM360410
Price per Unit
$2,700.00 (Exc GST)
$3,105.00 (Inc GST)
FEATURES:

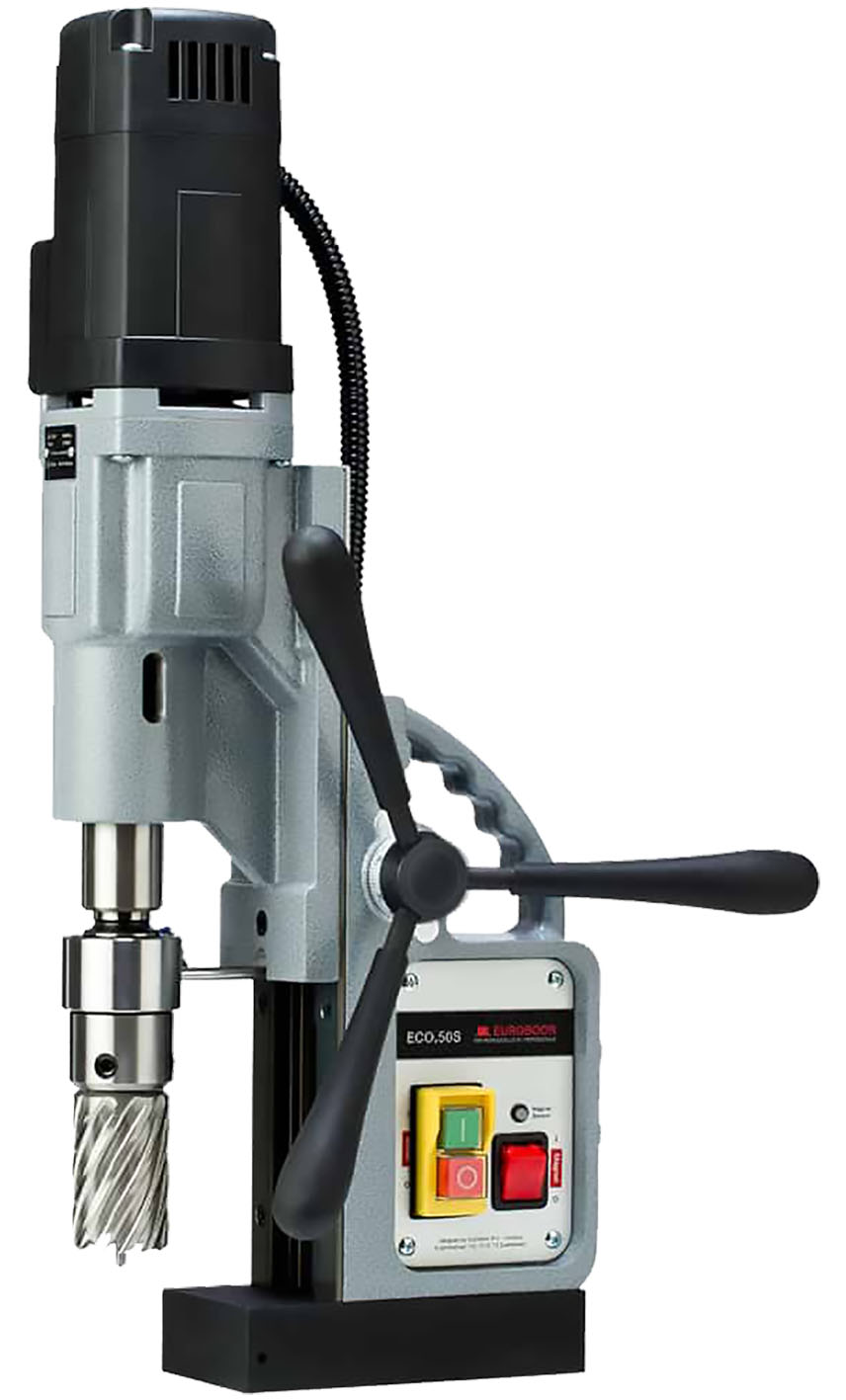

* Euorboor ECO-50S Magnetic Drilling system with 1.25kW motor to cope with the heaviest of work.
* Lightweight and compact unit only 11.2 Kg.
* Morse Taper 3 Spindle.
* The drilling system features a complete coolant system and roller bearing arbor support.
* 2 Speed Integrated oil bath gearbox
* High precision slide & rail construction..
* Comes with 12 month warranty
