| Brand | Euroboor |
|---|---|
| Model | EC0-50T |
| Cap. Annular Cutters (mm) | 55 |
| Cap. Twist Drills (mm) | 23 |
| Cap. Countersinking (mm) | 60 |
| Threading (M) | M20 |
| Stroke (mm) | 170 |
| Weight (kg) | 168 x 84 |
| Magnetic Force (kg) | 1,850 |
| Speeds (no.) | Variable |
| No-Load Speed (rpm) | 60 – 500 |
| Load Speed (rpm) | 60 – 500 |
| Spindle | MT3 / Weldon |
| Voltage (V) | 240 |
| Motor Power (kW) | 1.7 |
| Weight Nett/Gross (kg) | |
| Volume (cm) | |
| Packing Size L x W x H |
Description
SKU : DSM360430
Price per Unit
$3,600.00 (Exc GST)
$4,140.00 (Inc GST)
FEATURES:

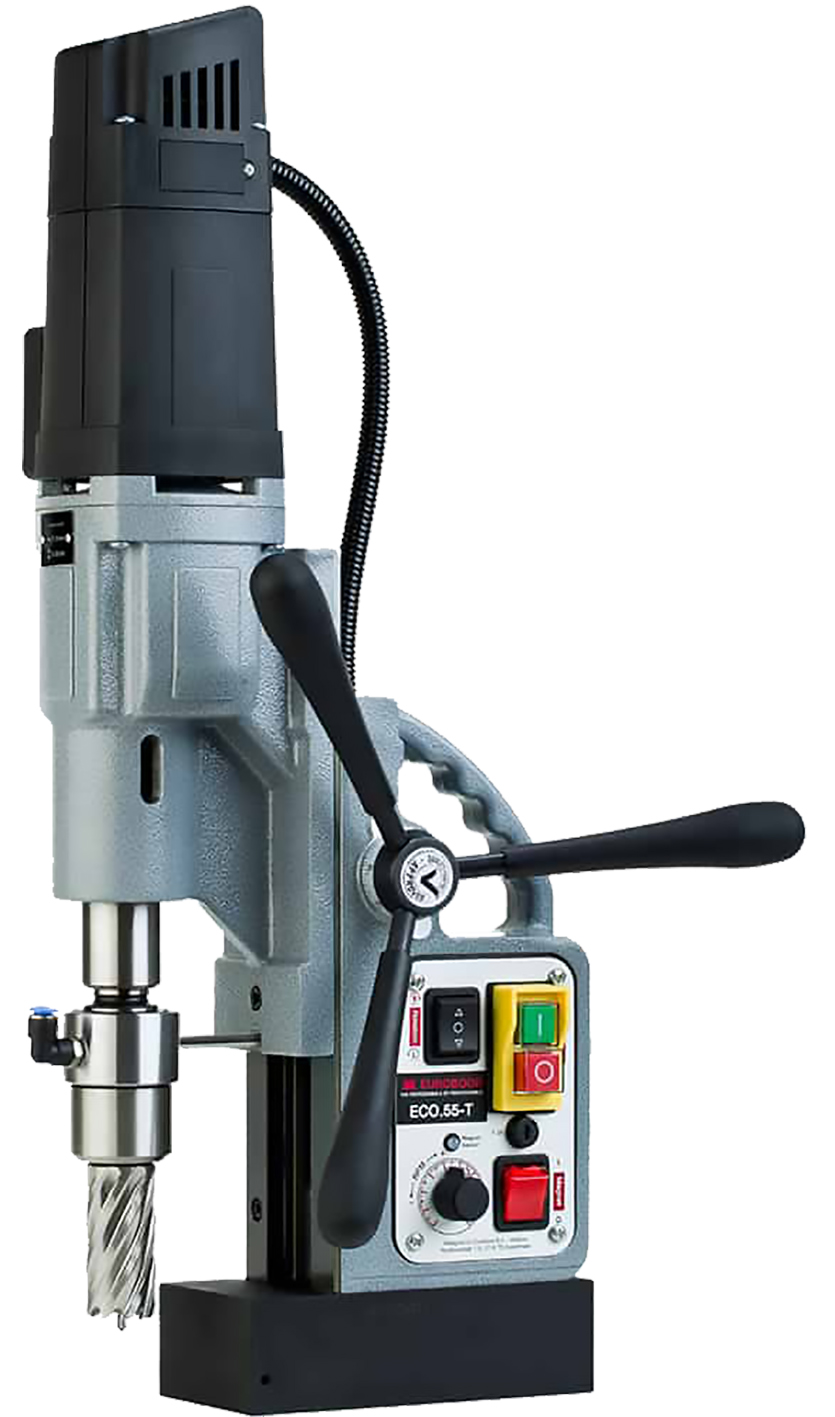

* Euorboor ECO-55-T Magnetic Drilling system with 1.7kW motor to cope with the heaviest of work.
* The drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* This model features LED load indicator with oil bath gearbox.
* Spindle is MT3.
* Comes with 12 month warranty.
| Weight | 25 kg |
|---|
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
MAG/DRILL: MACKMA M30- 30MM CAPACITY
SKU:
DSM360190
MAG/DRILL: MACKMA M50RLX- 50MM CAPACITY
SKU:
DSM360220
M50 RLX magnetic drilling machine, versatile in a compact form. The exchangeable MT 2 makes this magnetic drilling machine all all- round machine for drilling purposes. The variable speed and right / left option enable this magnetic drilling machine to also be used for tapping / threading up to M16, reaming and countersinking. This machine is supplied as standard with auto coolant system cleverly placed on top of the machine. The magnetic drilling machine is powered by a strong 1150 watts Eibenstock motor.
MAG/DRILL: EUROBOOR ECO-36 LOW PROFILE 36MM CAPACITY
SKU:
DSM360408
* Euorboor ECO-36 Low Profile Magnetic Drilling system with a 1kW powerful motor to cope with the heaviest of work.
* At 10.3kg it is lightweight and at 165mm it is the lowest profile machine in the market.
* The drilling system features a coolant system and roller bearing arbor support.
* Comes with a 12 month warranty.
MAG/DRILL: EUROBOOR ECO-50-T 50MM CAPACITY
SKU:
DSM360412

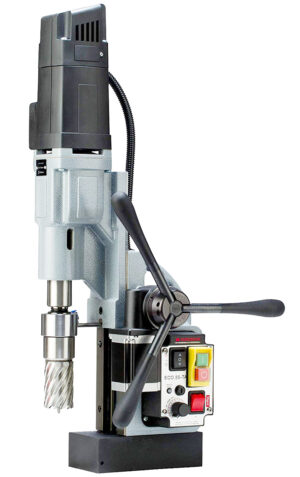

MAG/DRILL: EUROBOOR ECO-55-TA 55MM CAPACITY
