Brand | Euroboor |
---|---|
Model | EC0-55TA Automatic |
Cap. Annular Cutters (mm) | 55 |
Cap. Twist Drills (mm) | 23 |
Cap. Countersinking (mm) | 60 |
Threading (M) | M20 |
Stroke (mm) | 170 |
Weight (kg) | 29.5Kg |
Magnet L x W (mm) | 1,850 |
Speeds (no.) | Variable |
No-Load Speed (rpm) | 60 – 500 |
Load Speed (rpm) | 60 – 500 |
Spindle | MT3 / Weldon |
Voltage (V) | 240 |
Motor Power (kW) | 1.7 |
Weight Nett/Gross (kg) | |
Volume (cm) | |
Packing Size L x W x H |
Availability : Enquire Now
Price per Unit
ex-gst
$4,550.00Inc-gst

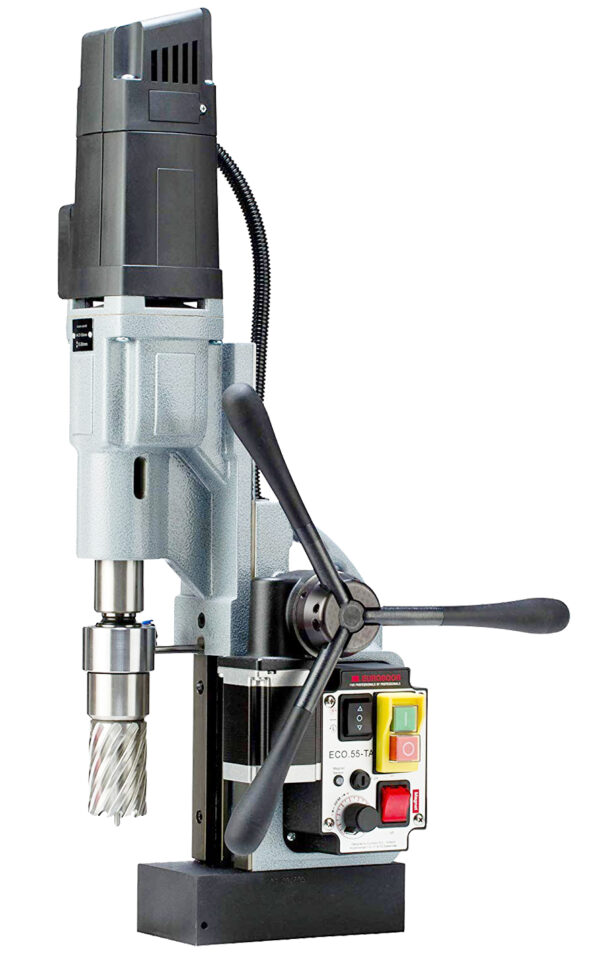

$5,232.50MAG/DRILL: EUROBOOR ECO-55-TA 55MM CAPACITY
Description
SKU : DSM360432
Price per Unit
$4,550.00 (Exc GST)
$5,232.50 (Inc GST)
FEATURES:
* Euorbor ECO-55-A Magnetic Drilling system with 1.7kW motor to cope with the heaviest of work.
* The automatic drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* This model features LED load indicator with oil bath gearbox.
* Spindle is MT3.
* Comes with 12 month warranty.
Weight | 25 kg |
---|
Specifications
Description
Reviews (0)
Be the first to review “MAG/DRILL: EUROBOOR ECO-55-TA 55MM CAPACITY” Cancel reply
Shipping & Delivery
Related products
MAG/DRILL: EUROBOOR EBM-360 30MM BATTERY OPPERATED
SKU:
DSM360400
$2,600.00
MAG/DRILL: EUROBOOR ECO-30-30MM CAPACITY
SKU:
DSM360402
$1,450.00
* Euorbor ECO-30- Magnetic Drilling system with a 900W motor to cope with the heaviest of work.
* At 8.5kg it is extremely light & very compact.
* The drilling system features a complete coolant system and roller bearing arbor.
* Easily mounts twist drills up to 13mm diameter.
* Comes with 12 month warranty.
MAG/DRILL: EUROBOOR ECO-32-32MM CAPACITY
SKU:
DSM360404
$1,800.00
* Euorboor ECO-32- Magnetic Drilling system with 1kW motor to cope with the heaviest of work.
* At 12.6kg it is lightweight and compact.
* The drilling system features a complete coolant system and roller bearing arbor support.
* Easily mounts twist drills up to 13mm diameter.
* Comes with 12 month warranty.
MAG/DRILL: EUROBOOR ECO-40S 40MM CAPCITY LIGHTWEIGHT
SKU:
DSM360409
$2,259.99
* Euorboor ECO-40S Magnetic Drilling system with a powerful 1.15kW motor to cope with the heaviest of work.
* At 10.3kg it is the lightest machine on the market.
* High efficiency motor with less heath generation.
* High accuracy capstan hub.
* Direct spindle drive.
* Integrated tool cooling and lubrication.
* Strong dual coil CNC machined magnet.
* Comes with 12 month warranty.
MAG/DRILL: EUROBOOR ECO-50S 50MM CAPACITY
SKU:
DSM360410
$2,700.00
* Euorboor ECO-50S Magnetic Drilling system with 1.25kW motor to cope with the heaviest of work.
* Lightweight and compact unit only 11.2 Kg.
* Morse Taper 3 Spindle.
* The drilling system features a complete coolant system and roller bearing arbor support.
* 2 Speed Integrated oil bath gearbox
* High precision slide & rail construction..
* Comes with 12 month warranty
MAG/DRILL: EUROBOOR ECO-100/4D 100MM CAPACITY
SKU:
DSM360434A
$4,250.00
* Euorbor ECO 100/4 Magnetic Drilling system with 1.9kW motor to cope with the heaviest of work.
* The automatic drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* Rotating base allows for a wide range of drilling operations.
* This model features LED load indicator with oil bath gearbox.
* Spindle is MT3.
* Comes with 12 month warranty
MAG/DRILL: EUROBOOR ECO-200 -200MM CAPACITY
SKU:
DSM360434B
$17,000.00
* Euorbor ECO 200 heavy duty magnetic drilling system with 3.6kW motor to cope with the heaviest of work.
* The automatic drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* Integrated safety strap and lifting shackle
* Spindle is MT4.
* Comes with 12 month warranty
