| Brand | Mackma |
|---|---|
| Model | M-30 |
| Cap. Annular Cutters (mm) | 30 |
| Cap. Twist Drills (mm) | 12 |
| Cap. Countersinking (mm) | 20 |
| Threading (M) | N.A. |
| Stroke (mm) | 70 |
| Weight (kg) | 9.9 |
| Magnetic Force (kg) | 995 |
| Speed (rpm) | 460 |
| Spindle | 19mm Weldon |
| Voltage (V) | 240 |
| Motor Power (kW) | 1.05 |
| Weight Nett/Gross | 12.60kg |
| Volume | 0.0546cm |
| Packing Size L x W x H | 600 x 350 x 260mm |

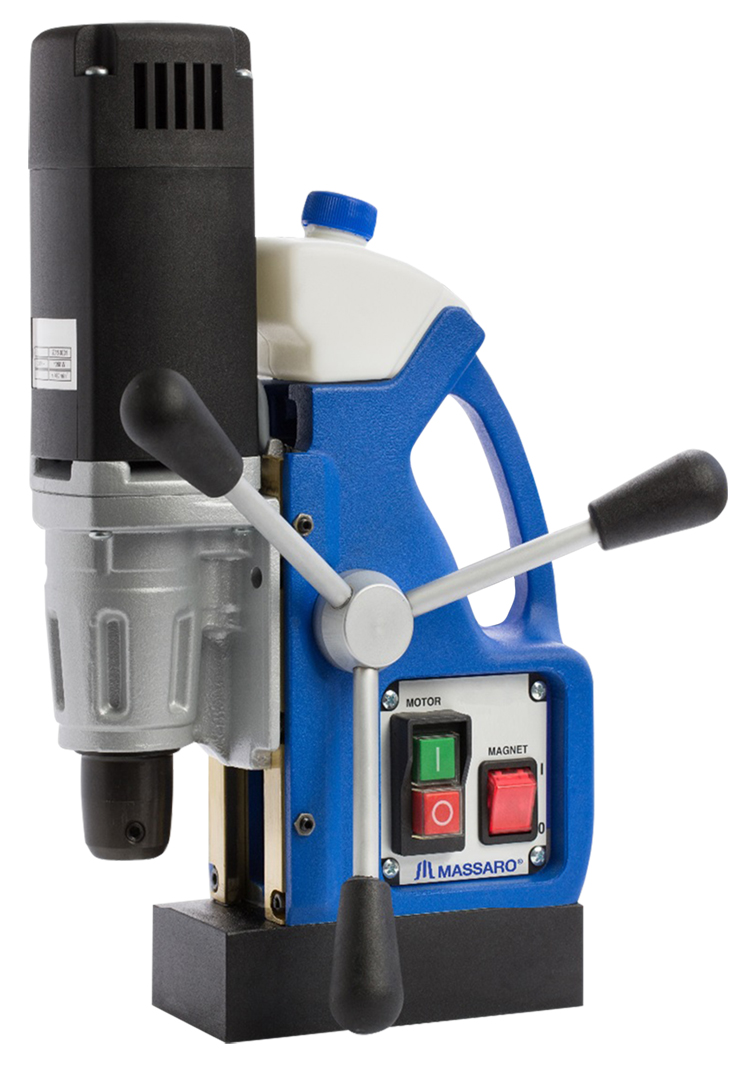

Description
SKU : DSM360190
Price per Unit
$1,450.00 (Exc GST)
$1,667.50 (Inc GST)
FEATURES:
Most wanted magnetic drilling machine, light as a feather
* The M30 is standard equipment with a strong magnet
* New electronics, auto cooling system and also powered by a highly reliable 1050 watts motor supplied by Eibenstock
* Weight is only 9.9 Kgs
| Weight | 12.6 kg |
|---|---|
| Dimensions | 0.6 × 0.35 × 0.26 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
MAG/DRILL: MACKMA M32X- 32MM CAPACITY
SKU:
DSM360200

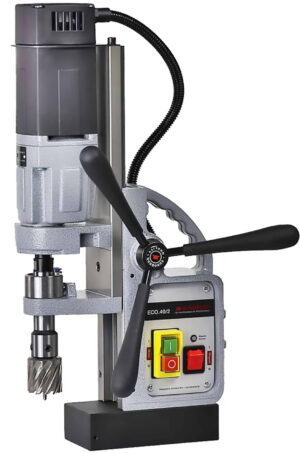

MAG/DRILL: EUROBOOR ECO-40S 40MM CAPCITY LIGHTWEIGHT
SKU:
DSM360409
* Euorboor ECO-40S Magnetic Drilling system with a powerful 1.15kW motor to cope with the heaviest of work.
* At 10.3kg it is the lightest machine on the market.
* High efficiency motor with less heath generation.
* High accuracy capstan hub.
* Direct spindle drive.
* Integrated tool cooling and lubrication.
* Strong dual coil CNC machined magnet.
* Comes with 12 month warranty.
MAG/DRILL: EUROBOOR ECO-50S 50MM CAPACITY
SKU:
DSM360410
* Euorboor ECO-50S Magnetic Drilling system with 1.25kW motor to cope with the heaviest of work.
* Lightweight and compact unit only 11.2 Kg.
* Morse Taper 3 Spindle.
* The drilling system features a complete coolant system and roller bearing arbor support.
* 2 Speed Integrated oil bath gearbox
* High precision slide & rail construction..
* Comes with 12 month warranty
MAG/DRILL: EUROBOOR ECO-50-T 50MM CAPACITY
SKU:
DSM360412

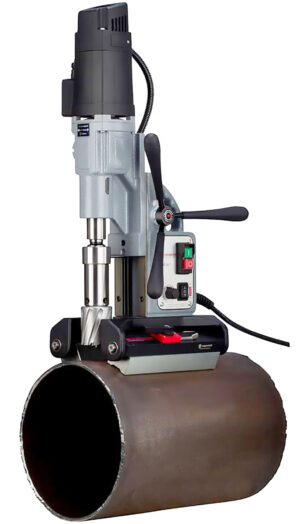

MAG/DRILL: EUROBOOR ECO-TUBE 55 – 55MM CAPACITY
SKU:
DSM360428
* Euorbor ECO-TUBE 55 Magnetic Drilling system with a 1.6kW motor to cope with the heaviest of work.
* No electricity required for magnetic base.
* Unique flexible features for pipes of various sizes.
* No special attachments needed to accommodate flat or curved surfaces.
* Highly stable wide stance.
* Two separate magnets allow the machine to swing away without losing position.
* Easy to handle.
* Direct spindle drive.
* Comes with 12 month warranty.

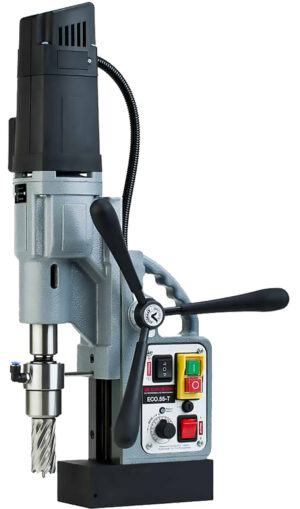

MAG/DRILL: EUROBOOR ECO-55-TA 55MM CAPACITY
SKU:
DSM360432
* Euorbor ECO-55-A Magnetic Drilling system with 1.7kW motor to cope with the heaviest of work.
* The automatic drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* This model features LED load indicator with oil bath gearbox.
* Spindle is MT3.
* Comes with 12 month warranty.

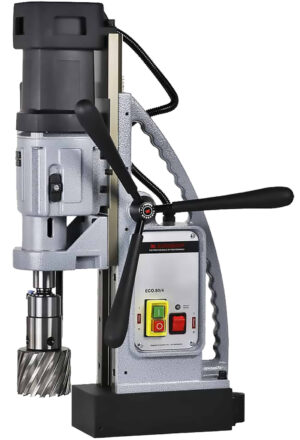

MAG/DRILL: EUROBOOR ECO-80/4 80MM CAPACITY
SKU:
DSM360433
* Euorbor ECO-80/4 Magnetic Drilling system with 1.8kW motor to cope with the heaviest of work.
* The automatic drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* Very long stroke.
* Spindle is MT3.
* Comes with 12 month warranty.
EUROBOOR ECO-32: CARBON BRUSHES ( PAIR)
SKU:
DSM360435
