| Brand | Mackma |
|---|---|
| Model | M-32X |
| Cap. Annular Cutters (mm) | 32 |
| Cap. Twist Drills (mm) | 13 |
| Cap. Countersinking (mm) | 22 |
| Threading (M) | N.A. |
| Stroke (mm) | 50 |
| Weight (kg) | 12 |
| Magnetic Force (kg) | 1,530 |
| Load Speed (rpm) | 460 |
| Spindle | 19mm Weldon |
| Voltage (V) | 240 |
| Motor Power (kW) | 1.05 |
| Weight Nett/Gross | 12.60kg |
| Volume | 0.5460cm |
| Packing Size L x W x H | 600 x 350 x 260mm |
| 1377.5 |
Description
SKU : DSM360200
Price per Unit
$1,500.00 (Exc GST)
$1,725.00 (Inc GST)
FEATURES:

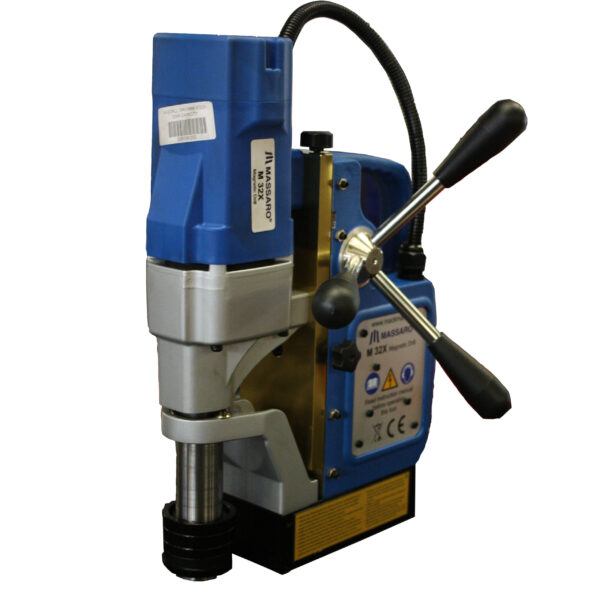

M32 X magnetic drilling machine is a compact, versatile machine
* Ideal for all drilling purposes, hole cutter and / or twist drills
* The machine is supplied with auto coolant system cleverly mounted on top of the machine
* The machine is powered by a 1050 watts Eibenstock motor.
| Weight | 12.6 kg |
|---|---|
| Dimensions | 0.6 × 0.35 × 0.26 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
