| Table Size (mm) | 585 x 190 |
|---|---|
| Drilling Capacity (mm) | 25 |
| Travel X-axis (mm) | 370 |
| Travel Y-axis (mm) | 145 |
| Swing (mm) | 404 |
| Max Nose to Table (mm) | 380 |
| Spindle Taper | MT3 |
| Quill Stroke (mm) | 92 |
| Quill Diameter (mm) | 62 |
| Column Diameter (mm) | 93 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 90 – 2150 |
| Motor (kW) | 0.75 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 225 / 230 |
| Volume (m³) | 0.1.9316cm |
| Stand Volume (m³) | 0.1488 |
| Stand Weight (kg) | 30 |
Description
SKU : MD-330258
Price per Unit
$2,500.00 (Exc GST)
$2,875.00 (Inc GST)
FEATURES:

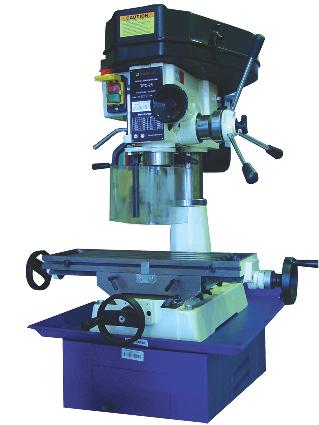

* Belt driven mill drill.
* Rigid and durable construction.
* The table is hardened and ground to provide a hard wearing surface.
* A good size compound table allows accurate movement in X & Y direction.
| Weight | 230 kg |
|---|---|
