| Table Size (mm) | 730 x 210 |
|---|---|
| Drilling Capacity (mm) | 32 |
| Travel X-axis (mm) | 500 |
| Travel Y-axis (mm) | 175 |
| Swing (mm) | 405 |
| Max Nose to Table (mm) | 460 |
| Spindle Taper | MT3 |
| Quill Stroke (mm) | 130 |
| Quill Diameter (mm) | 76 |
| Column Diameter (mm) | 110 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 110 – 2080 |
| Motor (kW) | 1.125 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 275 / 310 |
| Volume (m³) | 0.74 |
| Stand Volume (m³) | 0.1488 |
| Stand Weight (kg) | 30 |
Description

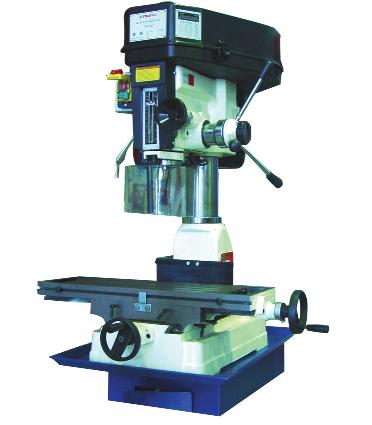

SKU : MD-330260
Price per Unit
$4,000.00 (Exc GST)
$4,600.00 (Inc GST)
FEATURES:
* Belt driven mill drill.
* Rigid and durable construction.
* The table is hardened and ground to provide a hard wearing surface.
* A good size compound table allows accurate movement in X & Y direction.
| Weight | 310 kg |
|---|---|
| Dimensions | 1.1 × 0.7 × 1.5 cm |
