Table Size (mm) | 800 x 240 |
---|---|
Drilling Capacity (mm) | 40 |
Travel X-axis (mm) | 560 |
Travel Y-axis (mm) | 230 |
Swing (mm) | 430 |
Max Nose to Table (mm) | 470 |
Spindle Taper | MT4 |
Quill Stroke (mm) | 120 |
Quill Diameter (mm) | 75 |
Column Diameter (mm) | Dovetail Column |
Speeds (no.) | 6 |
Speed Range (rpm) | 75 – 1600 |
Table Slot (mm) | 14 |
Motor (kW) | 1.1 |
Voltage (V) | 230 |
Weight Nett / Gross (kg) | 470 / 560 Ks |
Volume (m³) | 2.8224 |
Stand Volume (m³) | 0.1488 |
Stand Weight (kg) | 30 |
Description
SKU : MD-330284
Price per Unit
$8,550.00 (Exc GST)
$9,832.50 (Inc GST)
FEATURES:
* Heavy cast square section column with dovetail slideway.
* Covers on both vertical & horizontal slideways.
* Heads can be tilted ±90°.
* Equipped with X and Y power feed units.
* Fitted with 2 axis digital readouts.
* Power rise & fall on the column.
* Fine down feed adjustment.
* Forward & reverse magnetic safety switch.
* Recycling coolant system with filters.
* Adjustable table travel stops.
* Adjustable depth gauge.
* Mounted on a heavy duty stand.
Weight | 560 kg |
---|---|
Dimensions | 1.28 × 1.05 × 2.1 cm |
Specifications
Description
Reviews (0)

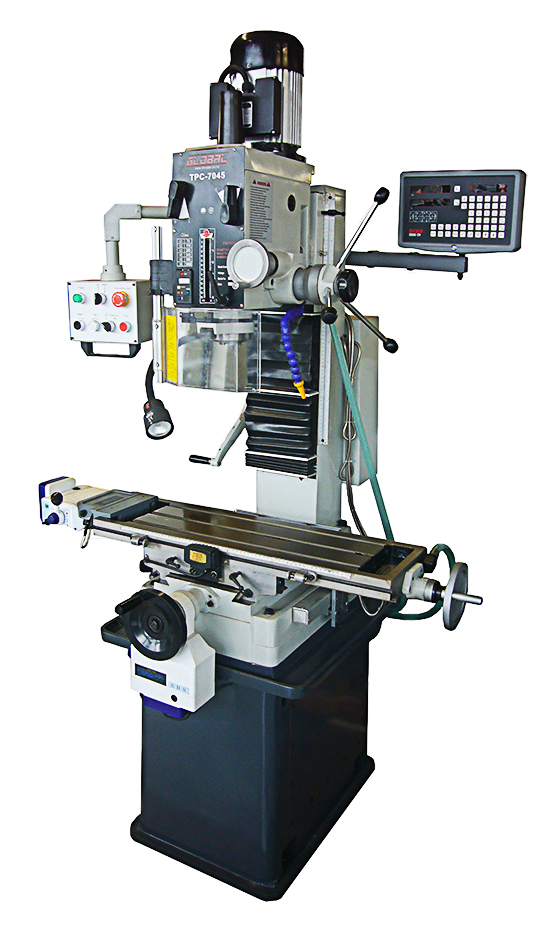

Be the first to review “MILL/DRILL: TPC-7045A PF & DRO W/STAND WEISS” Cancel reply
