| Table Size (mm) | 500 x 140 |
|---|---|
| Drilling Capacity (mm) | 16 |
| Travel X-axis (mm) | 320 |
| Travel Y-axis (mm) | 140 |
| Swing (mm) | 350 |
| Max Nose to Table (mm) | 275 |
| Spindle Taper | MT2 |
| Quill Stroke (mm) | 50 |
| Column Diameter (mm) | Dovetail |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 50 – 2250 |
| Table Size (mm) | 10 |
| Motor (kW) | 0.75 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 60 / 70 |
| Volume (m³) | 0.1814 |
Description
SKU : MD-330396
Price per Unit
$1,900.00 (Exc GST)
$2,185.00 (Inc GST)
FEATURES:

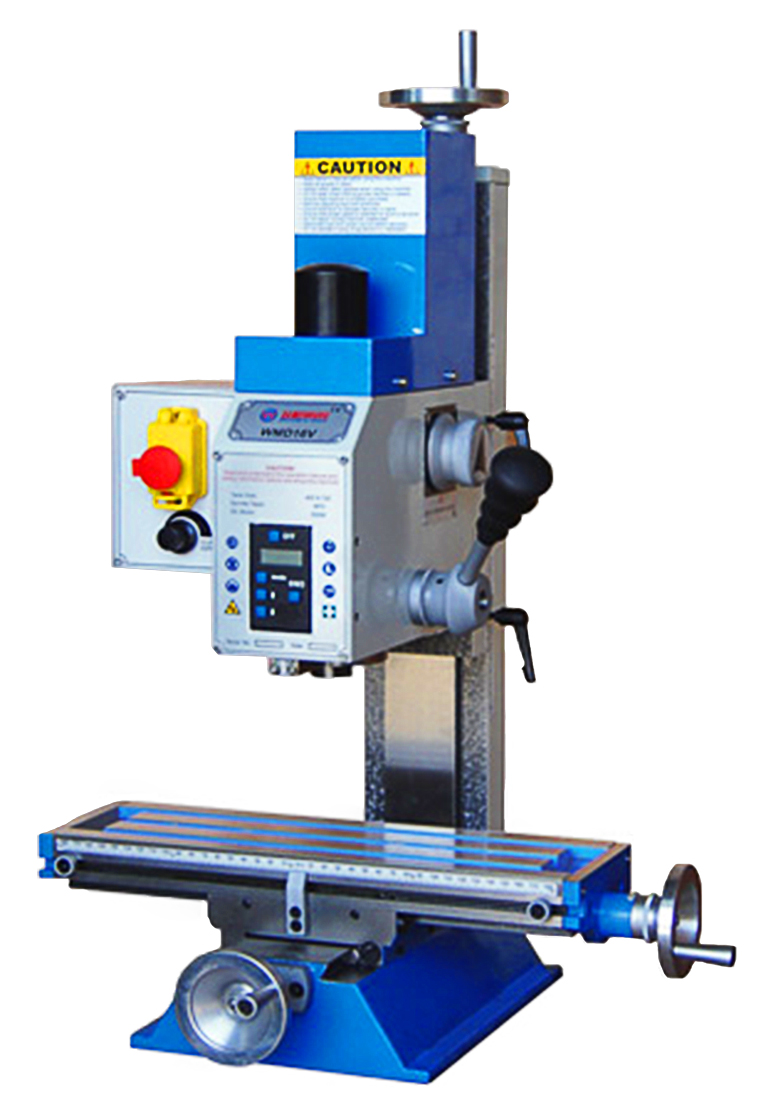

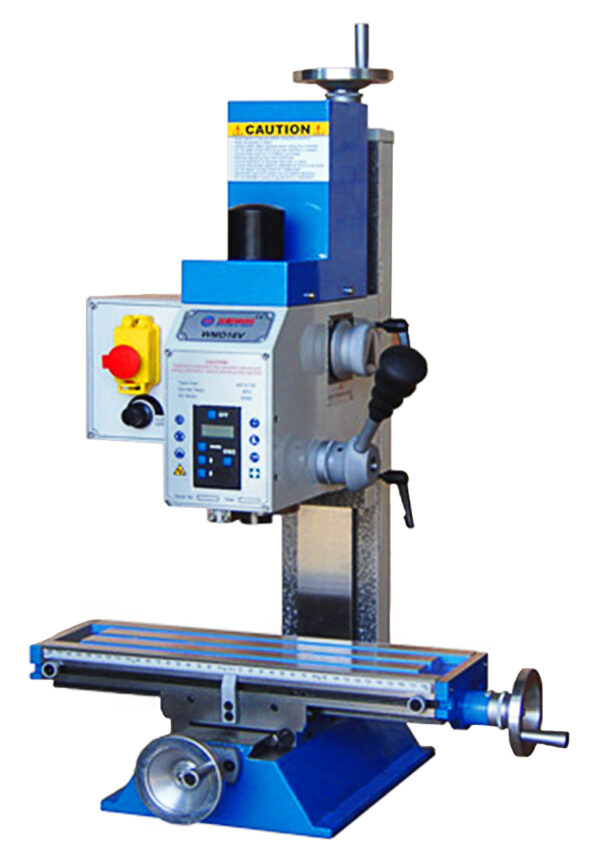

* Compact milling & drilling machine with variable speed control.
* Brushless motor provides more power & less maintenance.
* Motor control board manufactured in the U.S.A.
* Digital displays for both speed & depth.
* Geared head for greater torque & quiet running.
* Head is raised & lowered on the dovetail column using a handwheel.
* Spindle is supported by high speed taper roller bearings.
* Fine down feed adjustment.
* Heads can be tilted ±90°.
* These models are ideal for hobbyists and small workshops.
| Weight | 70 kg |
|---|---|
| Dimensions | 0.48 × 0.45 × 0.84 cm |
