Table Size (mm) | 840 x 210 |
---|---|
Drilling Capacity (mm) | 30 |
Travel X-axis (mm) | 580 |
Travel Y-axis (mm) | 200 |
Swing (mm) | 380 |
Max Nose to Table (mm) | 470 |
Spindle Taper | MT3 |
Quill Stroke (mm) | 70 |
Quill Diameter (mm) | 70 |
Column Diameter (mm) | 130 |
Speeds (no.) | Variable |
Speed Range (rpm) | 50 – 2250 |
Table Slot (mm) | 14 |
Motor (kW) | 1.5 |
Voltage (V) | 230 |
Weight Nett / Gross (kg) | 240 / 280 |
Volume (m³) | 1.27 |
Packing Size L x W x H (mm) | 1100 x 700 x 1650 |
Stand Volume (m³) | 0.126 |
Stand Weight (kg) | 32 |
Availability : Enquire Now
Price per Unit
ex-gst
$3,100.00Inc-gst

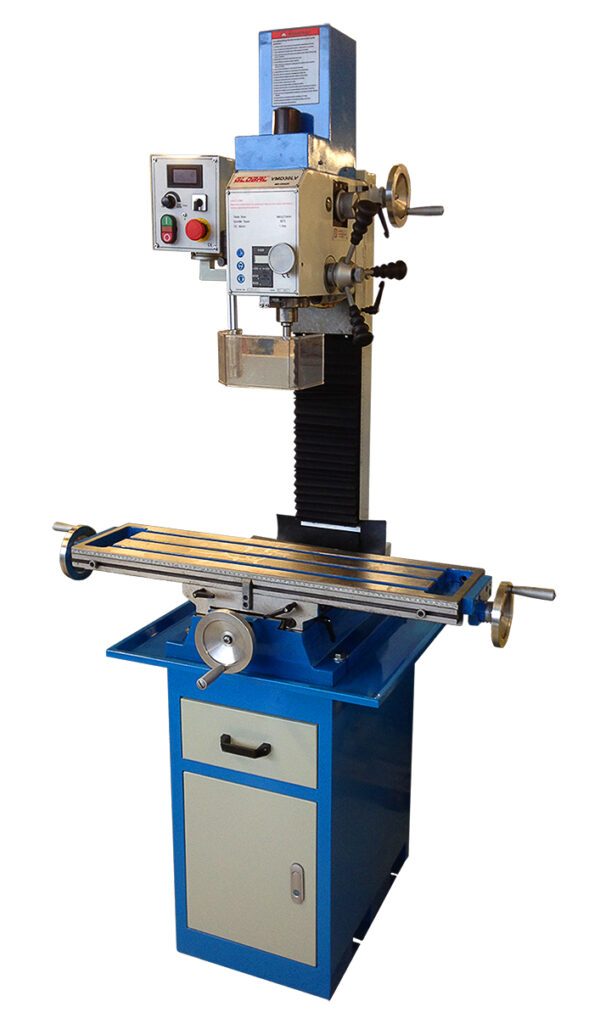

$3,565.00MILL DRILL: WMD-30L 1.5kW WEISS
Description
SKU : MD-330418
Price per Unit
$3,100.00 (Exc GST)
$3,565.00 (Inc GST)
FEATURES:
* The WMD30L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
Weight | 280 kg |
---|---|
Dimensions | 0.85 × 0.89 × 1.12 cm |
