| Table Size (mm) | 1500 x 300 |
|---|---|
| Travel X-axis (mm) | 1150 |
| Travel Y-axis (mm) | 400 |
| Travel Z-axis (mm) | 500 |
| Vertical Spindle Taper | NT40 (NT50 Available) |
| Vertical Speeds (no.) | 12 |
| Vertical Speeds (rpm) | 35 – 1600 |
| Horizontal Spindle Taper | NT40 |
| Horizontal Speeds (no.) | 12 |
| Horizontal Speeds (rpm) | 40 – 1800 |
| Motor Power (kW) | 4.125 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 3500 / 3800 |
| Volume (m³) | 7.4520cm |
| Packing Dimensions L x W x H |
MILLING MACHINE: PHOEBUS PBM-GVS300A TAIWAN
$45,000.00
MILLING MACHINE: FU-320A UNIVERSAL
$21,000.00
Description
SKU : MM-280700
Price per Unit
$66,000.00 (Exc GST)
$75,900.00 (Inc GST)

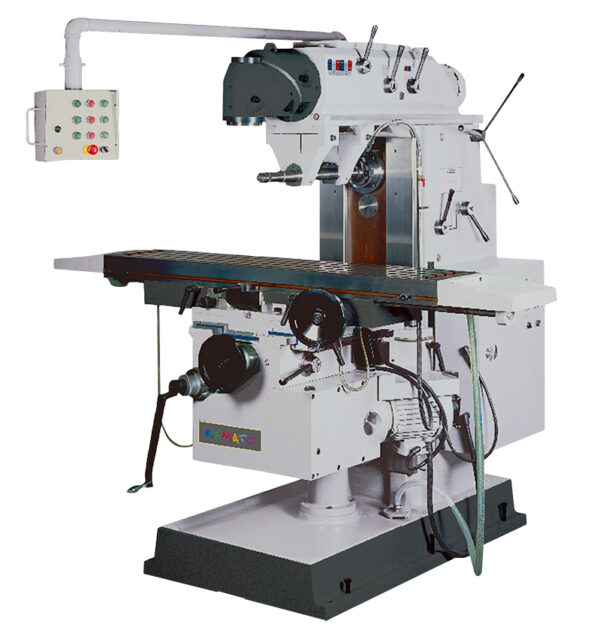

FEATURES:
* This is a heavy duty and rigid mill made from high quality meehanite casting.
* Power overarm and universal head.
* Rapid traverse on X Y & Z axis with variable speeds.
* All gears and shafts are hardened.
* Table swivels 45deg both left and right.
* All square slideways and table are hardened and ground for durability and long service.
* Available in either NT40 or NT50.
Options:
Extended table 1850 x 350mm, DRO Fitted, Chip tray, Auto lube, LED Lanp
* CE Certification, Enclosed splash shield, Spindle motor inverter
* 10hp Motor, with or without brake
| Weight | 3800 kg |
|---|---|
| Dimensions | 1.8 × 1.8 × 2.3 cm |
