| Table Size (mm) | 1370 x 254 |
|---|---|
| Travel X-axis (mm) | 876 |
| Travel Y-axis (mm) | 400 |
| Travel Y-axis (mm) | 420 |
| Quill Stroke (mm) | 127 |
| Quill Diameter (mm) | 100 |
| Spindle Taper | NT40 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 80 – 3800 |
| Max Nose to Table (mm) | 80 – 483 |
| Max Nose to Column (mm) | 180 – 515 |
| Motor (kW) | 3.75 |
| Weight Nett / Gross (kg) | 1500 / 1580 |
| Volume | 4.9347cm |
| Packing Size L x W x H (mm) | 1720 X 1510 X 1900 |
Description
SKU : MM-244242
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:

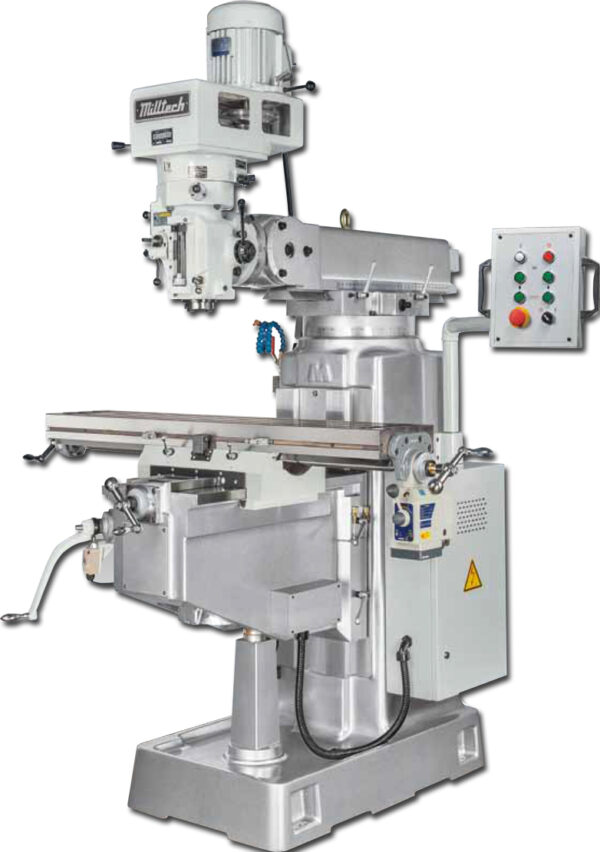

* The 4VS model turret milling machine comes with two table options – 1270 & 1370mm.
* Table and guideways are hardened and precision ground.
* Y-Z axis have rubber way cover for protection.
* Auto lubrication system.
* Electrical cabinet.
* One shot lubrication system.
* Ways are X & Y are Tercite B coated.
* Fitted with power feed on X travel.
* Made in Taiwan.
| Weight | 1580 kg |
|---|---|
| Dimensions | 1.72 × 1.51 × 1.9 cm |
