| Table Size (mm) | 1320 x 320 |
|---|---|
| Travel X-axis (mm) | 820 |
| Travel Y-axis (mm) | 300 |
| Travel Z-axis (mm) | 400 |
| Max Nose to Table (mm) | 500 |
| Max Table Load (kg) | 300 |
| Spindle Taper | NT40 |
| Speeds (no.) | 11 |
| Speed Range (rpm) | 45 – 1660 |
| X & Y Axes Feed (mm/min) | 1,000 |
| Z Axis Table (mm/min) | 750 |
| T Slot (mm) | 14 |
| Motor (kW) | 3 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 1650 / 1700 |
| Volume | 67637cm |
| Packing Size L x W x H | 1830 x 1760 x 2100mm |

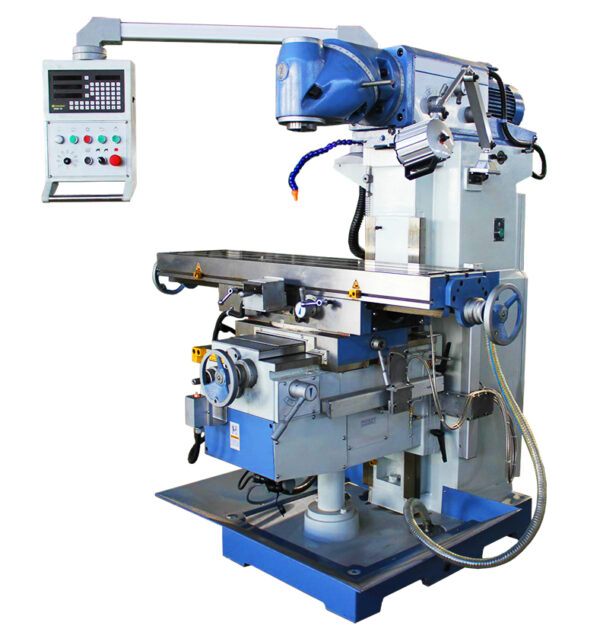

Description
SKU : MM-280705
Price per Unit
$21,000.00 (Exc GST)
$24,150.00 (Inc GST)
FEATURES:
* Machine bed made of high strength HT-200 cast iron.
* Precision ground guide ways with hardened surface for long wear resistance.
* Hardened and ground gears.
* Universal cutter head swivels on 2 axes.
* Variable feed rates.
* Quick change over from horizontal to vertical machining.
| Weight | 3900 kg |
|---|---|
| Dimensions | 1.83 × 1.76 × 2.1 cm |
