| Table Size (mm) | 1000 x 240 |
|---|---|
| Travel X-axis (mm) | 600 |
| Travel Y-axis (mm) | 230 |
| Travel Z-axis (mm) | 380 |
| Quill Stroke (mm) | 120 |
| Quill Diameter (mm) | 86 |
| Vertical Spindle | NT40 |
| Vertical Speeds (no.) | 9 |
| Vertical Speeds (rpm) | 220 – 2400 |
| Horizontal Spindle | NT40 |
| Horizontal Speeds (no.) | 8 |
| Horizontal Speeds (rpm) | 60 – 1620 |
| Nose to Table (mm) | 380 |
| Nose to Column (mm) | 460 |
| Table Slot (mm) | 14 |
| Vertical Motor (kW) | 1.5 |
| Horizontal Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 825 / 875 |
| Volume | 3.400cm |
Description

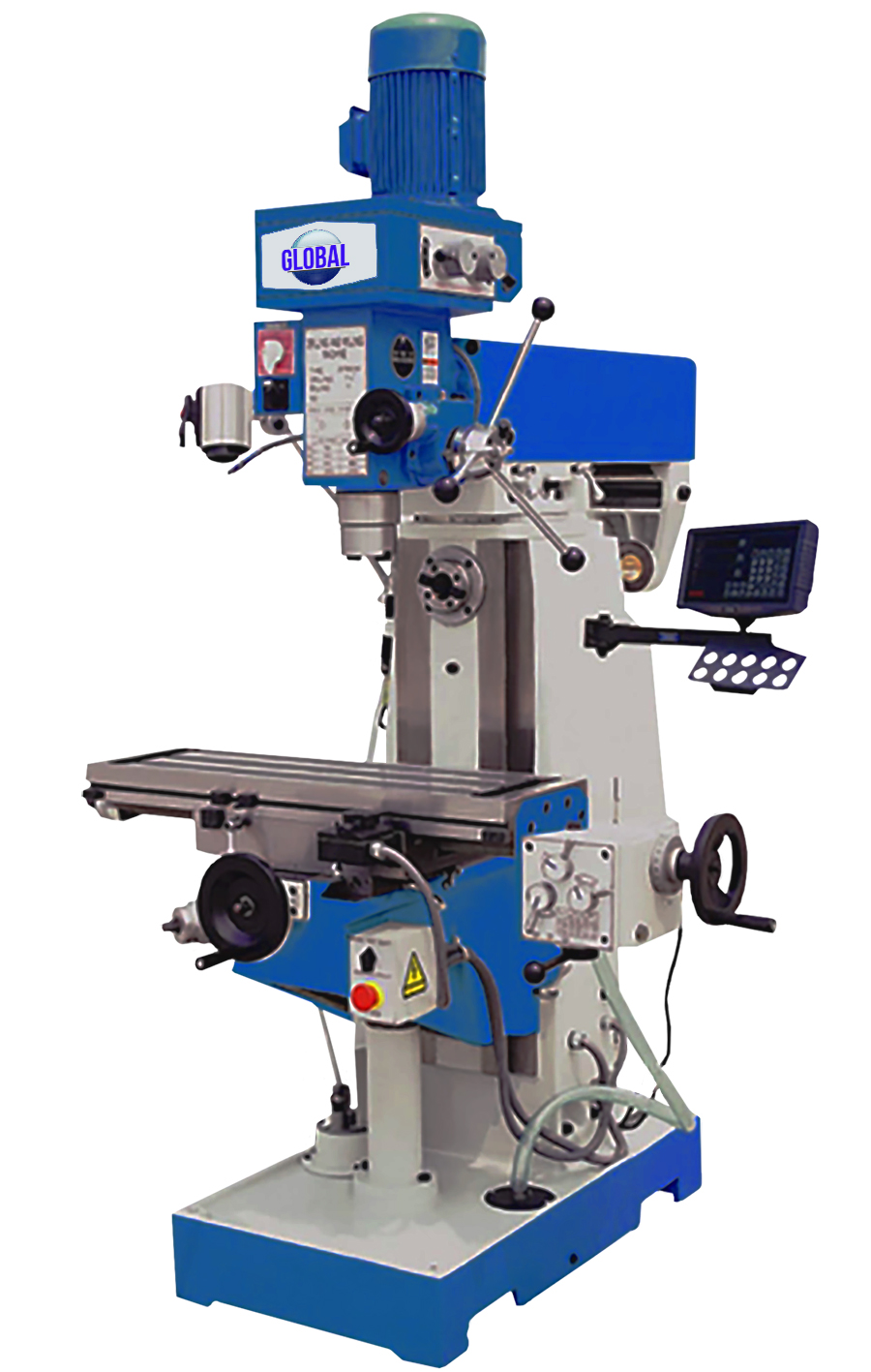

SKU : MM-280822
Price per Unit
$9,900.00 (Exc GST)
$11,385.00 (Inc GST)
FEATURES:
* Ideal small workshop machine for both horizontal and vertical milling.
* Coarse and fine spindle feeds.
* Belt driven on both vertical and horizontal spindles.
* Single phase version all belt driven.
* Dovetail guide ways on all axis for rigidity.
* Swivel table for universal applications.
* Forward/reverse-on/off switch front panel.
* Comprehensive accessory kit makes this mill very cost effective.
| Weight | 875 kg |
|---|
