| Table Size (mm) | 1000 x 240 |
|---|---|
| Travel X-axis (mm) | 400 |
| Travel Y-axis (mm) | 230 |
| Travel Z-axis (mm) | 380 |
| Quill Stroke (mm) | 120 |
| Quill Diameter (mm) | 90 |
| Vertical Spindle Taper | NT40 |
| Vertical Speeds (no.) | 8 |
| Vertical Speeds (rpm) | 110 – 1760 |
| Horizontal Spindle Taper | 30 |
| Horizontal Speeds (no.) | 8 |
| Horizontal Speeds (rpm) | 58 – 1355 |
| Max Nose to Table (mm) | 420 |
| Max Nose to Column (mm) | 550 |
| Table Slot (mm) | 14 |
| Vertical Motor (kW) | 0.85 |
| Horizontal Motor (kW) | 1.5 |
| Weight (kg) | 970 |
| Volume | 3.8250cm |
| Packing Dimensions L x W x H |
Description
SKU : MM-280828
Price per Unit
$8,500.00 (Exc GST)
$9,775.00 (Inc GST)

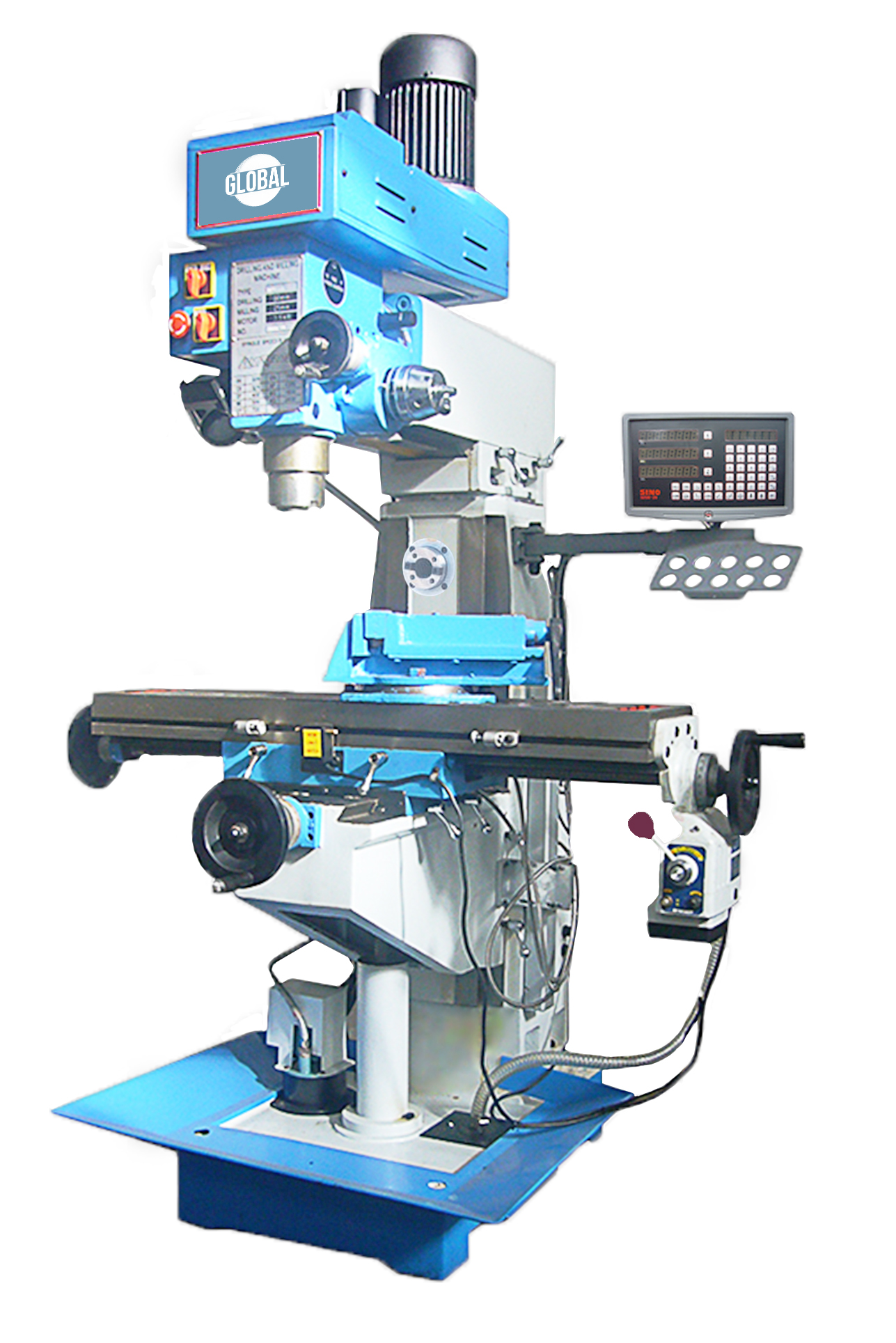

FEATURES:
* Belt driven horizontal & vertical milling machine.
* Slideways hardened for durability.
* Head has Right -Left head rotation.
* Head can swivel 180°
* X Travel has automatic feed.
| Weight | 970 kg |
|---|
