| Table Size (mm) | 1000 x 240 |
|---|---|
| Travel X-axis (mm) | 400 |
| Travel Y-axis (mm) | 230 |
| Travel Z-axis (mm) | 380 |
| Quill Stroke (mm) | 120 |
| Quill Diameter (mm) | 90 |
| Spindle Taper | NT40 |
| Speeds (no.) | 8 |
| Speed Range (rpm) | 110 – 1760 |
| Max Nose to Table (mm) | 420 |
| Max Nose to Column (mm) | 550 |
| Table Slot (mm) | 14 |
| Motor (kW) | 0.85 |
| Voltage (V) | 240 |
| Weight Nett / Gross (kg) | 970 |
| Volume (m³) | 4.515cm |
| Packing Dimensions L x W x H | 1400 x 1500 x 2150cm |

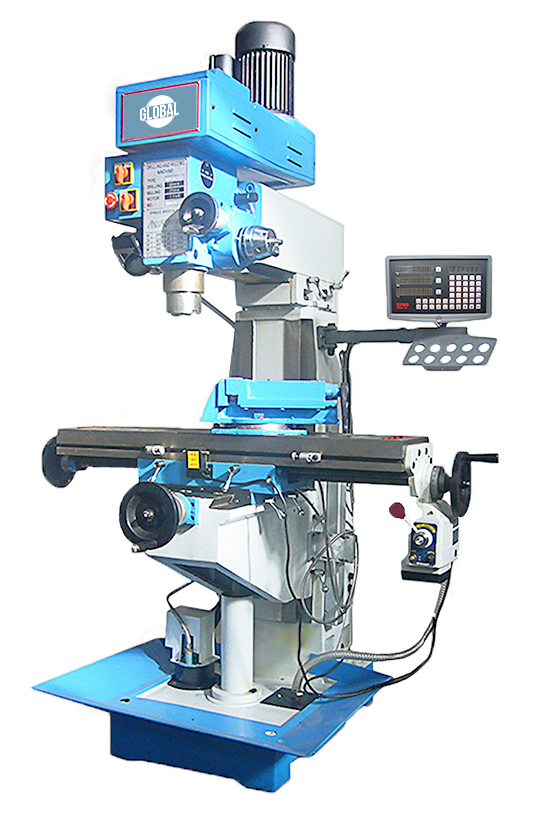

MILLING MACHINE: GLOBAL WM20 1PH
$13,000.00
PLANER: TANNER FOUR SIDER 300MM 7.5HP
$56,000.00
Description
SKU : MM-280823
Price per Unit
$11,600.00 (Exc GST)
$13,340.00 (Inc GST)
FEATURES:
* Small & economical knee type milling machine.
* Precision milling table with machined T-slots.
* Heavy castings & large slide surfaces for performance & stability.
* In built recyclable coolant system.
* One shot oil lubrication.
* 3 axis digital readout & X axis powerfeed.
* Ideal machine for small workshops.
| Weight | 970 kg |
|---|---|
| Dimensions | 1.4 × 1.5 × 2.15 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
MILLING MACHINE: TM240 R8 1PH
SKU:
MM-228000
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: GLOBAL WM20 1PH
SKU:
MM-228100
MILLING MACHINE: X6325A /TM240 NT30 Single Phase
SKU:
MM-228509
* The TM-240 (X6323B) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Fitted with precision ball screws for utmost accuracy
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand
MILLING MACHINE: X6325D 5HP 3PH NT40
SKU:
MM-228610
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: TM270 (M6325D) 3PH
SKU:
MM-228615
* The TM-270 (X6325D) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand
MILLING MACHINE: 4H 1270 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244128
MILLING MACHINE: 6H 1372 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244136
* The 6H model comes with standard 1372mm table length.
* Table is hardened and ground for durability and long service life.
* Powerful 5hp motor.
* Large diameter quill (105mm) for rigid milling performance.
* Y-Z axis rubber way cover.
* Auto lubrication system.
* Electrical cabinet.
* Made in Taiwan.
TURRET MILL: CNC BMT-2500V-NC
SKU:
MMC400400
