| Table Size (mm) | 1370 x 255 |
|---|---|
| Travel X-axis (mm) | 800 |
| Travel Y-axis (mm) | 405 |
| Travel Z-axis (mm) | 405 |
| Quill Stroke (mm) | 130 |
| Quill Diameter (mm) | 102 |
| Spindle Taper | NT40 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 50 – 3750 |
| Max Nose to Table (mm) | 446 |
| Max Nose to Column (mm) | 650 |
| Table Slot (mm) | 16 |
| Motor (kW) | 5HP |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 1590 / 1690 |
| Volume | 5.208cm |
| PACKING SIZE | 1550 X 1580 X 2100 |
Sold out
Description
SKU : MM-228616
Price per Unit
$18,500.00 (Exc GST)
$21,275.00 (Inc GST)
FEATURES:
* The TM-270 (X6325A) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Fitted with precision ball screws for utmost accuracy
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand
| Weight | 1690 kg |
|---|---|
| Dimensions | 1.6 × 1.55 × 2.1 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
MILLING MACHINE: TM240 R8 1PH
SKU:
MM-228000
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: X6325A /TM240 NT30 Single Phase
SKU:
MM-228509
* The TM-240 (X6323B) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Fitted with precision ball screws for utmost accuracy
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand

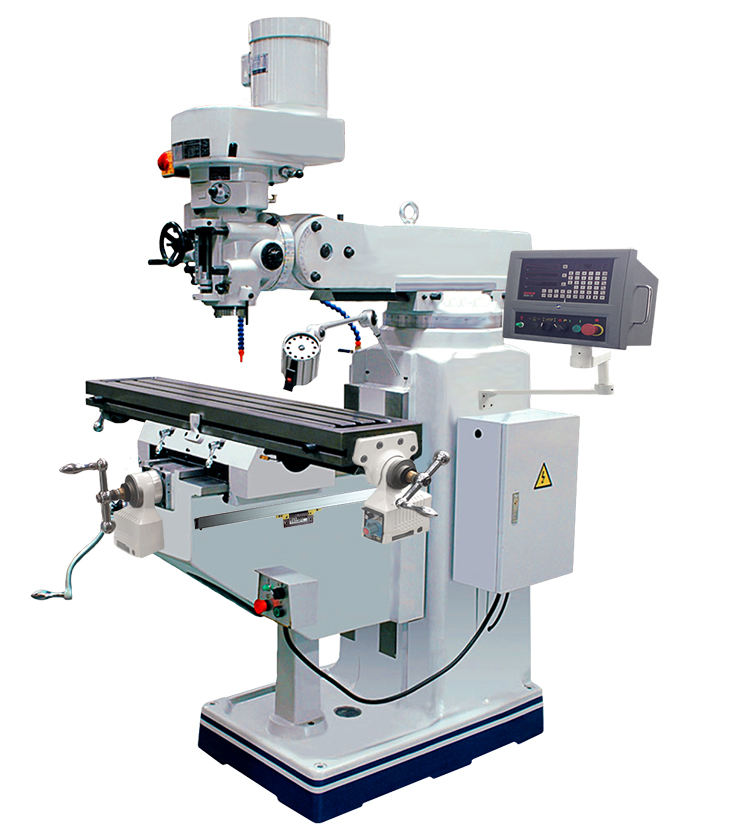

MILLING MACHINE: TM270 (M6325D) 3PH
