| Table Size (mm) | 250 x 1370 |
|---|---|
| Travel X-axis (mm) | 840 |
| Travel Y-axis (mm) | 305 |
| Travel Z-axis (mm) | 400 |
| Quill Stroke (mm) | 127 |
| Quill Diameter (mm) | 86 |
| Spindle Taper | NT40 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 65 – 4500 |
| Max Nose to Table (mm) | 415 |
| Table Slot (mm) | 16 |
| Motor (kW) | 2.25 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 1,380 / 1,465 |
| Volume | 7.2000cm |
| Packing Size L x W x H (mm) | 1,600 x 1,800 x 2,500 |
Sold out
Description
SKU : MM-228510
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:

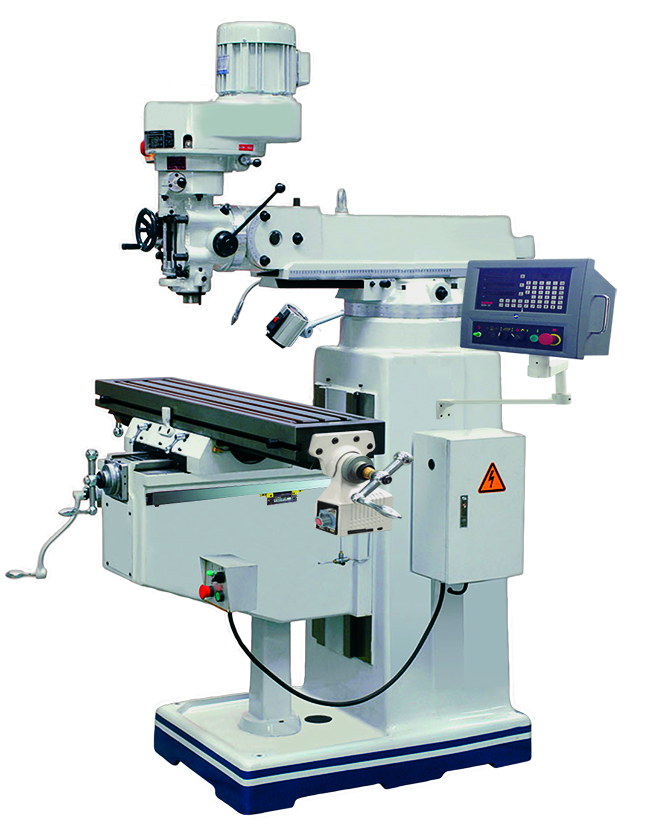

* The TM-240 (X6323B) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
| Weight | 1380 kg |
|---|---|
| Dimensions | 1.6 × 1.8 × 2.5 cm |
