| Table Size (mm) | 1000 x 240 |
|---|---|
| Travel X-axis (mm) | 400 |
| Travel Y-axis (mm) | 230 |
| Travel Z-axis (mm) | 380 |
| Quill Stroke (mm) | 120 |
| Quill Diameter (mm) | 86 |
| Spindle Taper (vert & horz) | NT40 |
| Nose to Table (mm) | 70 – 420 |
| Nose to Column (mm) | 145 – 550 |
| Vertical Speed (rpm) | 100 – 2000 |
| Horizontal Speed (rpm) | 58 – 1355 |
| Table Slot (mm) | 14 |
| Vertical Motor (kW) | 2.25 3 Phase Variable Speed |
| Horizontal Motor (kW) | 1.125 |
| Weight Nett / Gross (kg) | 970 / 1,000 |
| Volume | 3.146cm |
| Packing Size L x W x H (mm) | 1,100mm x 1,300 x 2,200 |
MILLING MACHINE: ZX7550CW 3PH
$9,700.00
MILLING MACHINE: ZX6350G HOR/VERTICLE G/HEAD
$13,200.00
Description
SKU : MM-280826
Price per Unit
$14,800.00 (Exc GST)
$17,020.00 (Inc GST)
FEATURES:

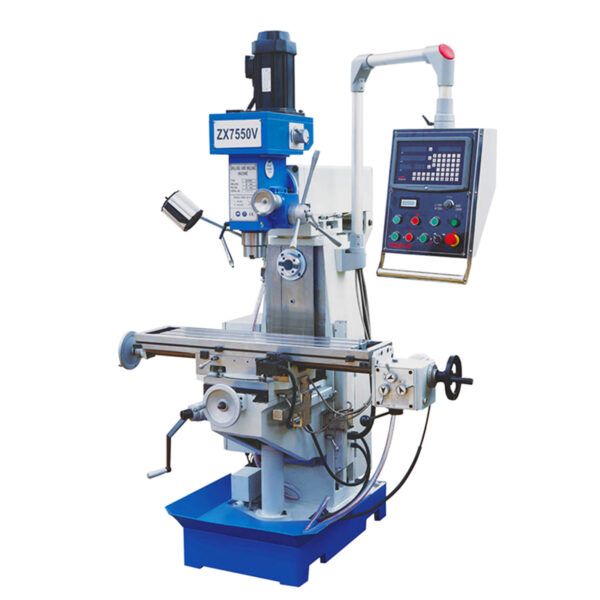

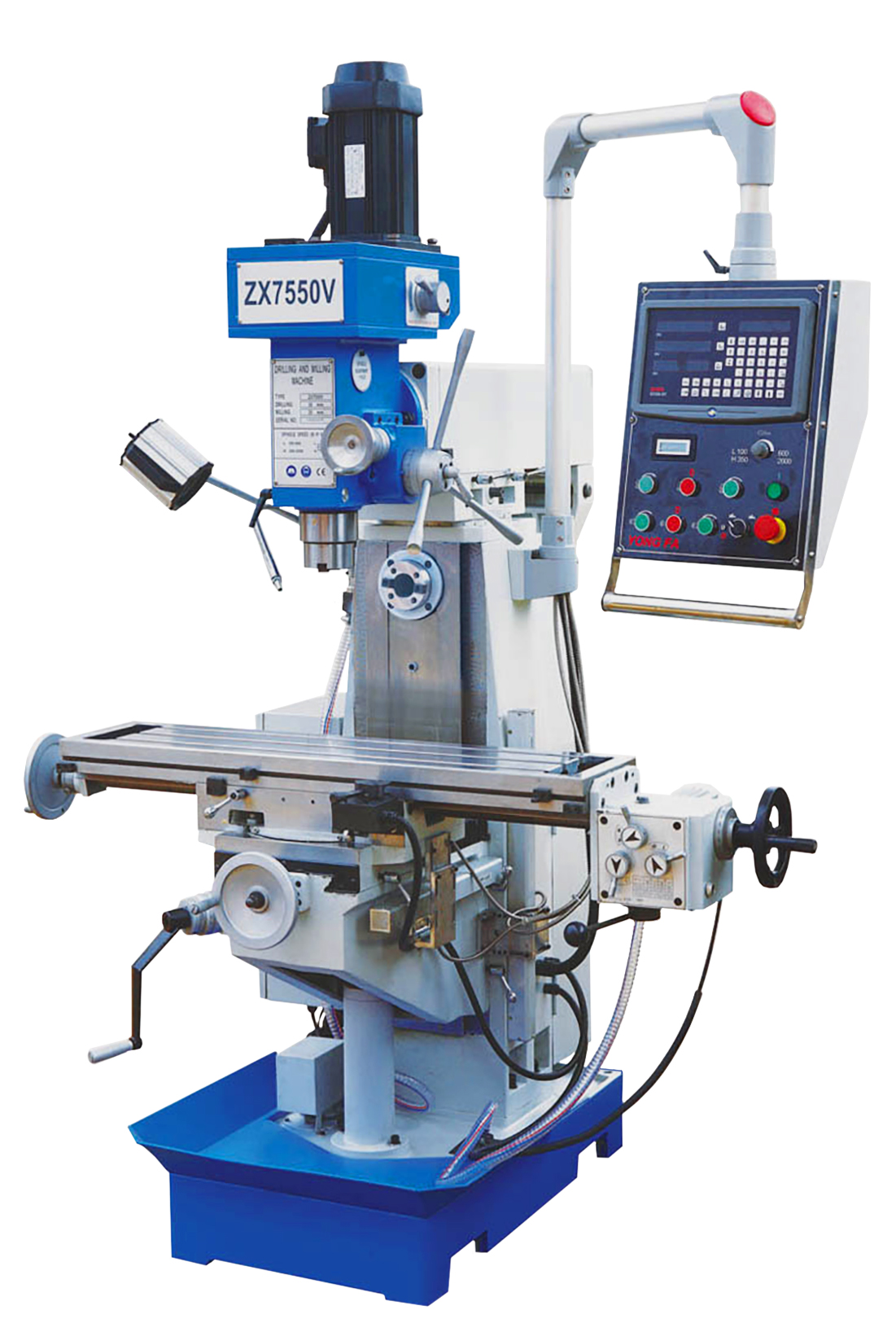

* The ZX7550V is a turret style horizontal & verticle milling machine.
* Head is fully tiliting, swivelling & rotating
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 100-2000rpm
* One shot lubrication
Digital 3 axis readout is Sino brand
* Lonitudianal power feed
| Weight | 970 kg |
|---|---|
| Dimensions | 1.1 × 1.3 × 2.2 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
MILLING MACHINE: X6325A /TM240 NT30 Single Phase
SKU:
MM-228509
* The TM-240 (X6323B) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Fitted with precision ball screws for utmost accuracy
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand
MILLING MACHINE: X6325D /TM240 NT40 Single Phase
SKU:
MM-228510
* The TM-240 (X6323B) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: M6325A/ TM240 R8
SKU:
MM-228514
* The TM-240A (X6325A) is a turret style milling machine.
* Fully tiliting, swivelling & rotating head.
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle.
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication.
MILLING MACHINE: TM270 (M6325D) 3PH
SKU:
MM-228615
* The TM-270 (X6325D) is a turret style milling machine.
* Head is fully tiliting, swivelling & rotating
* The saddle guideways are lined with turcite wearable material.
* Hardened & precision ground work table and guideways.
* High quality meehanite cast body.
* Chromed and ground spindle
* Variable speed from 65-4500rpm
* Double 55° dovetail guide way is adopted on both Y and Z axis.
* One shot lubrication
* Comes with power rise and fall on X axis
* X & Y axis are fitted with aglin power feeds (Taiwan)
Digital 3 axis readout is Sino brand
MILLING MACHINE: 2H 1067 X 225MM TABLE TURRET TAIWAN
SKU:
MM-244118
MILLING MACHINE: 4H 1270 X 254MM TABLE TURRET TAIWAN
SKU:
MM-244128
MILLING MACHINE: PHOEBUS PBM-GVS300A TAIWAN
SKU:
MM-280050
* This is a very heavy universal type milling machine with large 1470 x 300mm table.
* Both horizontal and vertical spindle tapers are NT40.
* Vertical head is variable speed while the horizontal spindle has 9 steps.
* Power feed on X, Y and Z direction with rapids.
* Comes with pendant control.
* Equipped with electric box.
* Made in Taiwan.
TURRET MILL: CNC BMT-2500V-NC
SKU:
MMC400400
