DESCRIPTION | Modular Milling Vice |
---|---|
JAW WIDTH | 125mm |
JAW OPENING | 150mm |
JAW HEIGHT | 50.0mm |
JAW TYPE | Pull Down |
LENGTH O/A | 345mm |
MATERIAL | Alloy Steel |
PARALLELISM | 0.005mm/100mm |
SQUARENESS | 0.005mm |
BODY HARDNESS | HRC-60 |
BASE | Fixed |
WEIGHT NETT/GROSS | 14kg |
VOLUME | 0.0120cm |
Description
SKU : VM-249284
Price per Unit
$985.00 (Exc GST)
$1,132.75 (Inc GST)
FEATURES:

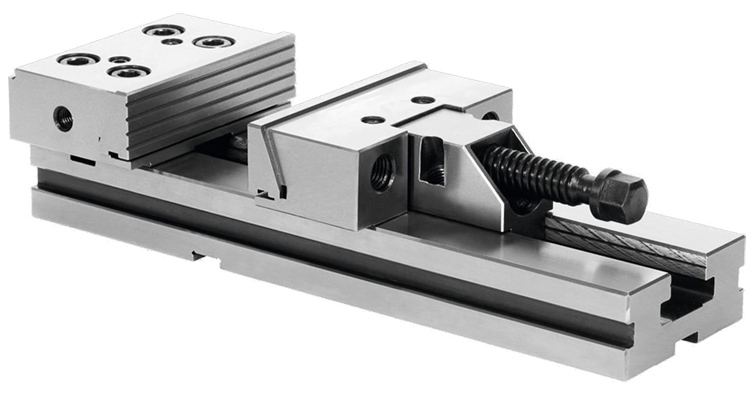

* High precision modular Milling Vice by Harlingen
* Accuracy to 0.005mm/100mm
* Manufactured from high alloy resitance steel
* All Harlingen vices and accessories are modular and interchangeable
* Perfect alignment is achieved to provide different workholding solutions
* Vices can be matched side to side with highest precision and minimal set up times
* Max jaw opening 150mm
Weight | 14 kg |
---|---|
Dimensions | 0.3 × 0.2 × 0.2 cm |
Specifications
Description
Reviews (0)
Be the first to review “MILLING VICE: 125MM MODULAR PULL DOWN JAWS HARLINGER” Cancel reply
Shipping & Delivery
