Description | Milling Vice |
---|---|
Model | LV50 |
Jaw Width (mm) | 125 |
Jaw Opening (mm) | 125 |
Base | Swivel |
Material | Cast Iron |
Weight (kg) | 29.5 |
Volume (m³) | 0.0269 |
Availability : Enquire Now
Price per Unit
ex-gst
$346.00Inc-gst

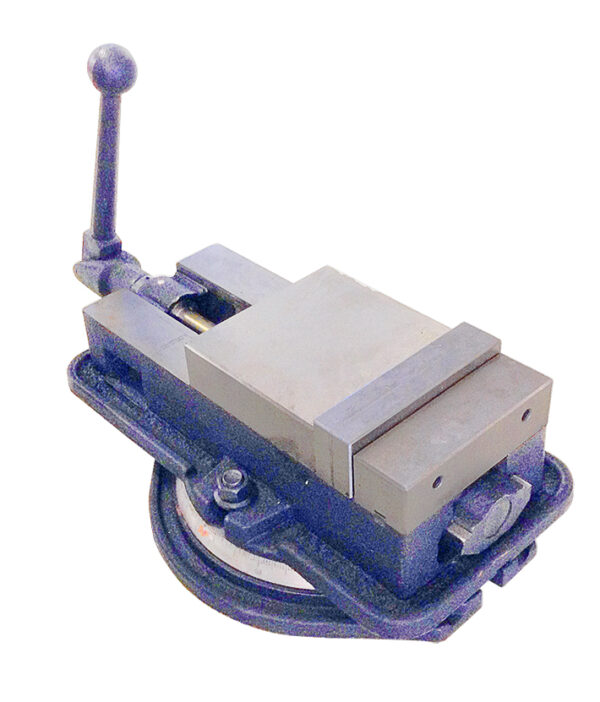

$397.90MILLING VICE: 125MM VER-LOCK LV50 SWIVEL BASE TAIWAN
Description
SKU : VM-9963122
Price per Unit
$346.00 (Exc GST)
$397.90 (Inc GST)
FEATURES:
* LV-50 Ver-lock Machine Vice
* The Ver-lock vice has a ductile steel body with hardened and ground movable steel jaw.
* All surfaces are precision ground and the bed is flame hardened
* Spherical segment allows for all directional alignment
* When clamping, a downward pressure of 1kg is exerted by the movable jaw for every 2kg of clamping pressure, preventing the work piece from tilting
* Bearing thrust collar cuts friction and increases clamping pressure
* Swivel base is graduated to 360
* Manufactured in Taiwan
Weight | 29.3 kg |
---|---|
Dimensions | 0.4 × 0.28 × 0.24 cm |
