BRAND | LGF Kronos |
---|---|
TYPE | Mitre Saw 350mm |
BLADE SIZE | 350mm |
CLAMPING | T Bar Pneumatic |
MOTOR | 3Hp |
VOLTAGE | 3 Phase 415V |
CUTTING CAPACITY | 100mm |
SPINDLE SIZE | 30mm |
WEIGHT NETT / GROSS | 90/92kg |
VOLUME | 0.7056cm |
Availability : Enquire Now
Price per Unit
ex-gst
$7,800.00Inc-gst

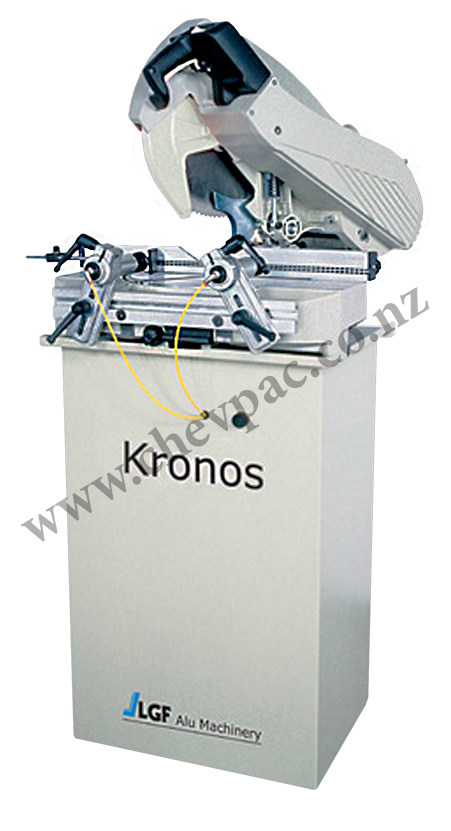

$8,970.00MITRE SAW; LGF KRONOS 350MM
Description
SKU : ALU301050
Price per Unit
$7,800.00 (Exc GST)
$8,970.00 (Inc GST)
FEATURES:
* LGF machines are made in Italy to strict CE standards.
* Manual down stroking of the head by means of ergonomic safety lever.
* Blade protection cover with automatic closing by means of lever.
* Head rotation on its own axis at -45° / 45° with mechanical locking system.
* Manual locking system on working bench at any intermediate degree.
* Rotating working bench.
* Equiped with air clamping and mist spray.
* Comes complete on heavy duty stand.
Weight | 92 kg |
---|---|
Dimensions | 1.44 × 0.7 × 0.7 cm |
Specifications
Description
Reviews (0)
Be the first to review “MITRE SAW; LGF KRONOS 350MM” Cancel reply
Shipping & Delivery
Related products
MITRE SAW; QCS-400 UP CUTTING
SKU:
ALU301040
$5,500.00
MITRE SAW: LGF FRIDA 400MM Blade Manual Down
SKU:
ALU301100
$9,499.00
* High quality Italian machine.
* Cutting off with manual downstroke of the blade.
* Rotating table between 80° and -80°, easy setting to any angle.
* Tilting head from 45° to -45° using mechanical blocking system.
* Horizontal pneumatic clamping system with rubber pads.
* Spray mist lubrication.
* Air filter and air gun.
CUT OFF SAW: LGF ASTRA AUTO UP CUT
SKU:
ALU301200
$9,900.00
* High quality Italian machine.
* Rising blade with an easy and light manual lever action.
* Rotating working bench, mechanical locking devices at 90°/45°/-45°.
* Tilting blade can cut at any angle between 80° and -80°, by means of mechanical stop on the rotating bench.
* Can perform ripping operations from 0 to 60 mm by means of rear movable fence.
* Full safety guarding around the work table.
* Vertical pneumatic clamping system with rubber pads.
* Spray mist lubrication.
* Air filter and air gun.
MITRE SAW: LGF PENTA MITRE
SKU:
ALU301350
$24,500.00
* High quality Italian machine.
* Rising blade with adjustable feeding.
* Rotating working bench, mechanical locking devices at 90°/45°/-45°, and pneumatic brakes for intermediate degrees.
* Tilting blade can cut at any angle between 80° and -80°.
* Digital display shows the intermediate degree cuts.
* Complete with trimming fence for performing trim cuts.
* Full safety guarding around the work table.
* Horizontal pneumatic clamping system with rubber pads.
* Can be fitted with blades from Ø 500mm - Ø 530m.
* Spray mist lubrication.
DOUBLE MITRE SAW: LGF DELTA
SKU:
ALU302100
$33,000.00
* This LGF Delta double mitre saw combination is ideal for the fabrication of aluminium joinery.
* Both saw heads are capable of compound mitres.
* Each table has horizontal air clamping.
* Equipped with electronic positioner with up to 99 memory allocations.
* With monochrome screen and industrial integrated keyboard.
* Automatic electronic movement of the right head.
* Pneumatic tilting heads from 90° to +45°.
* USB port to save/upload cutting lists and programmes.
* Full protection of the saw blades with automatically closing hoods.
* Horizontal pneumatic clamping system with rubber pads.
* Automatic nebulizer lubrication.
TWIN HEAD SAW:GAMMA SWING DIG
SKU:
ALU302200
$81,345.00
* Equipped with electronic positioner.
* With 10” colour screen and touchscreen system.
* Radial sliding of the saw carriage.
* Pneumatic tilting heads from 90° to 45°.
* USB port to save/upload cutting lists and programmes.
* Available in 4mt or 5mt bed length.
* Can be fitted with a 500mm, 530mm or 550mm blade.
* Full protection of the saw blades with automatically closing hoods.
* Horizontal pneumatic clamping system with rubber pads.
* Automatic nebulizer lubrication.
LGF: GAMMA SWING DIGIT PLUS
SKU:
ALU302210
$105,000.00
* Equipped with electronic positioner.
* With 10” colour screen and touchscreen system.
* Radial sliding of the saw carriage.
* Pneumatic tilting heads from 90° to +45°.
* USB port to save/upload cutting lists and programmes.
* Available in 4mt or 5mt bed length.
* Available with a 500mm, 530mm or 550mm blade.
* Full protection of the saw blades with automatically closing hoods.
* Horizontal pneumatic clamping system with rubber pads.
* Automatic nebulizer lubrication.
AUTO CUT OFF SAW: XERON
SKU:
ALU303200
$20,293.00
* The LGF XERON is a automatic cut off saw with bar feeder.
* Pendulum movement of the sawing group.
* Pneumatic external adjustment of the saw blade feeding.
* Bar feeding by means of paneumatic cylinder.
* Manual setting of cutting length by means of hand wheel from 0 to 660mm complete with metric scale and magnifying glass.
* Fully automatic cutting procedure.
* Full protection safety covers with manual closing.
