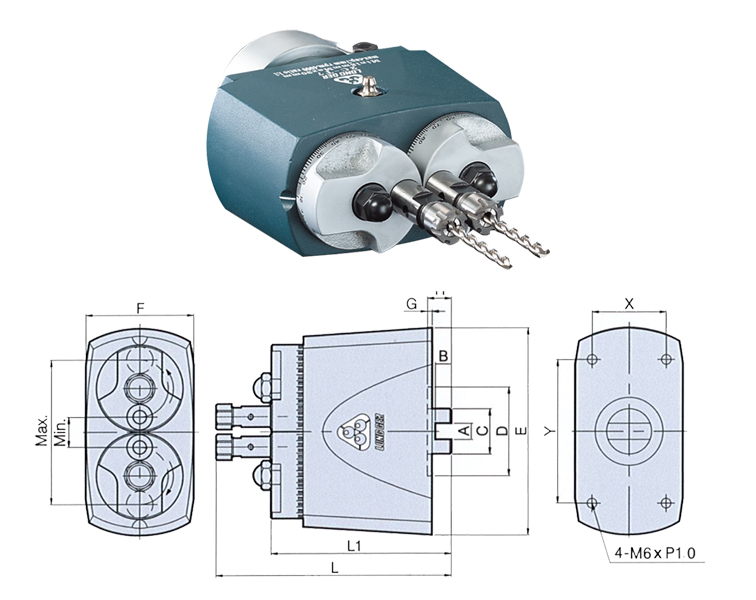

| DESCRIPTION | Multi Spindle Driiling Head |
|---|---|
| MODEL | 2C-T16 |
| CAPACITY | 1.0 – 14.0mm |
| SPINDLES | 2 |
| RANGE | 36.0 – 164mm |
| HEAD MOUNT | Flange |
| DRIVE DOG | Morse Taper: MT 1,2,3,4 |
| WEIGHT NETT/GROSS | 10.7/11.0kg |
| VOLUME | 0.0048cm |
Description
SKU : MSH200100
Price per Unit
$2,300.00 (Exc GST)
$2,645.00 (Inc GST)
FEATURES:
* Multi-heads are ideally suited to general and small batch production runs of components having equally spaced holes where single spindle set-ups prove uneconomic
* This 2 spindle head has a range from 36 – 164mm
* Flange mount to machine
* Drive dog options: MT 1,2,3,4
* Reversable
* Suitable for tapping operations
* Other configerations available on request
| Weight | 11 kg |
|---|---|
| Dimensions | 0.12 × 0.2 × 0.2 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
